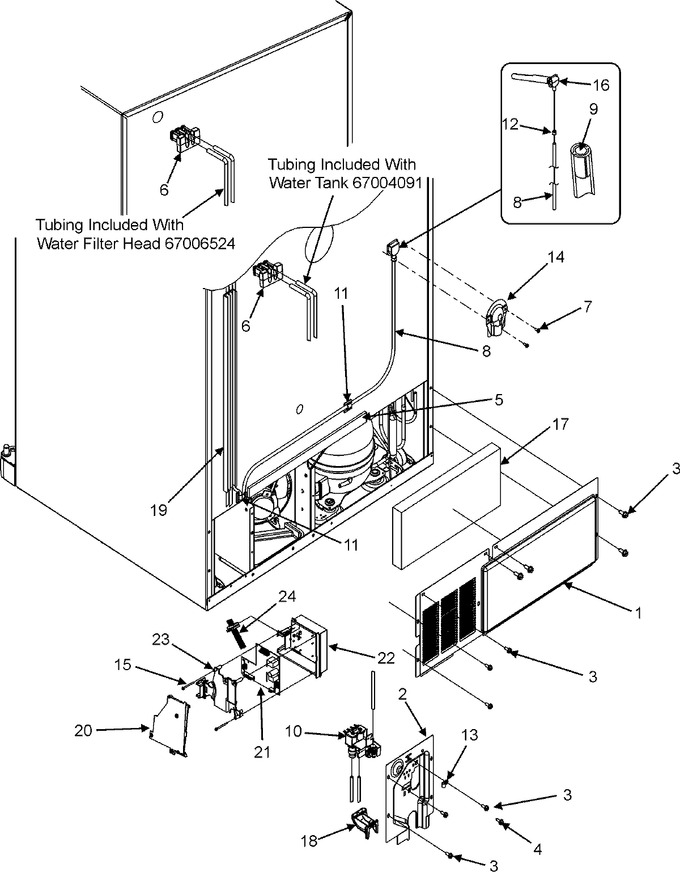

01 - Cabinet Back


02 - Compressor & Cond Motor


03 - Controls


04 - Crisper Assembly


05 - Evaporator/evap Motor/rollers


06 - Freezer Door


07 - Ice Maker


08 - Interior Cabinet/frz Shelves/toe Grille


09 - Pantry Assembly


10 - Refrigerator Door


11 - Refrigerator Shelves


12 - Supplemental Information


13 - Water Dispenser/water Filter/water Tank


14 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006101		Cover, Mc Back	10			$ 76.68
2	67004098		Cover, Water Valve	10	Appelez-nous	-
3	67006425		Screw, Sm	10		Immediately	$ 6.95
4	WP489128		Screw   (Replaces: 67006662)	10			$ 10.88
5	B5759649		Gasket, Mc Back	10	Appelez-nous	-
6	67004092		Block, Filter	10	Appelez-nous	-
7	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
8	WPB5705307		Tube, Plastic   (Replaces: 67003729)	10			$ 12.43
9	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)	10		Immediately	$ 7.82
10	WP67006531		Valve, Dual Water   (Replaces: 67006531)	10		Immediately	$ 167.68
11	WPM0104106		Clip   (Replaces: M0104106)	10			$ 7.78
12	WPM0114003		Clip, Speed   (Replaces: M0114003)	10			$ 11.05
13	W10833902		Clamp, Tube   (Replaces: M0108105)	10			$ 10.99
14	12726003		Cover, Water Line   (Replaces: 67003331)	10			$ 18.28
15	67005420		Screw, Sm	10	Appelez-nous	-
16	W11176463		Elbow, Fill Tube   (Replaces: 10463201)	10		Immediately	$ 114.15
17	67003796		Fiber, Acoustic	10			$ 19.27
18	12831101		Sweep, Dual Tube   (Replaces: 67004101)	10			$ 12.41
19	67004102		Track, Waterline	10			$ 31.99
20	67006615		Screw	10	Appelez-nous	-
20	67005421		Cover, Hv Box	10			$ 64.83
21	67006829		Board, Hv Control X	10	Appelez-nous	-
22	67004969		Box, Hv Control	10	Appelez-nous	-
23	67005418		Spacer, Hv Box	10	Appelez-nous	-
24	67005419		Harness, Hv Board	10			$ 126.27
25	WP67006506		Cord, Power   (Replaces: 67006506)	10			$ 26.42

    View Diagram in Separate Window       Print Part List
