EF36LNDFSS | Leon's : Appliance Model Lookup

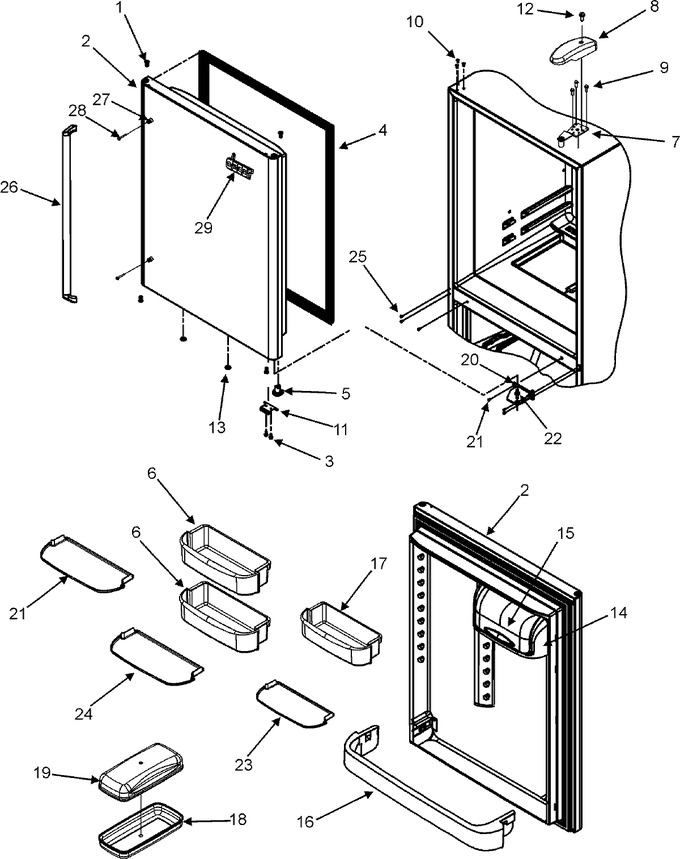

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	67004978	Bushing, Door (blk)	10			$ 21.05
2	67007002	Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
3	WP98165	Screw (Replaces: 67006287)	10			$ 8.00
4	W10849442	Gasket, Ref Door (blk) (Replaces: 67003557)	10			$ 344.33
5	WP67003639	Closure, Door (blk) (Replaces: 67003639)	10			$ 86.02
6	67003776	Bucket, Ref Dr (large)	10	Appelez-nous	-
7	WP12566606ED	Hinge, Top (blk) (Replaces: 67001011)	10		Immediately	$ 44.89
8	67001012	Cover, Top Hinge (blk)	10			$ 47.34
9	WP489349	Screw (Replaces: 67006303)	10		Immediately	$ 7.88
10	WP12246608	Plug, Top Hinge Button (blk) (Replaces: M0310731)	10		Immediately	$ 7.76
11	W11708403	Stop, Door (blk) (Replaces: 67003780)	10		Immediately	$ 14.05
12	WP8281196	Screw (Replaces: 67006521)	10		Immediately	$ 7.19
13	67004838	Plug, Vent (blk)	10			$ 10.68
14	WP67001279	Tray, Dairy (Replaces: 67001279)	10		Immediately	$ 83.82
15	WP67003637	Door, Dairy (Replaces: 67003637)	10		Immediately	$ 78.73
16	67002477	Retainer, Door	10	Appelez-nous	-
17	WPW10371193	Bucket, Ref Dr (med) (Replaces: 67003775)	10		Immediately	$ 74.80
18	67004404	Tray, Butter	10	Appelez-nous	-
19	67004405	Lid, Butter Tray	10	Appelez-nous	-
20	WP12607104ED	Hinge, Center (blk) (Replaces: 67001167)	10			$ 152.73
21	W11573362	Screw (Replaces: 67006380)	10			$ 14.02
22	WP67006642	Pin, Center Hinge (Replaces: 67006642)	10			$ 7.93
23	67006906	Gripper (med)	10	Appelez-nous	-
24	67007055	Gripper (large)	10	Appelez-nous	-
25	WP489349	Screw, Tf Hex/washer Hd (Replaces: 67005822)	10		Immediately	$ 7.88
26	67006898	Handle Assy., Door (stnls)	10			$ 299.95
26	67006181	Screw, Set	10	Appelez-nous	-
27	67006900	Mount, Handle	10	Appelez-nous	-
28	67006901	Screw	10		Immediately	$ 8.02
29	DE81-07230A	Nameplate (dacor) (Replaces: 67006172)	10			$ 154.22
