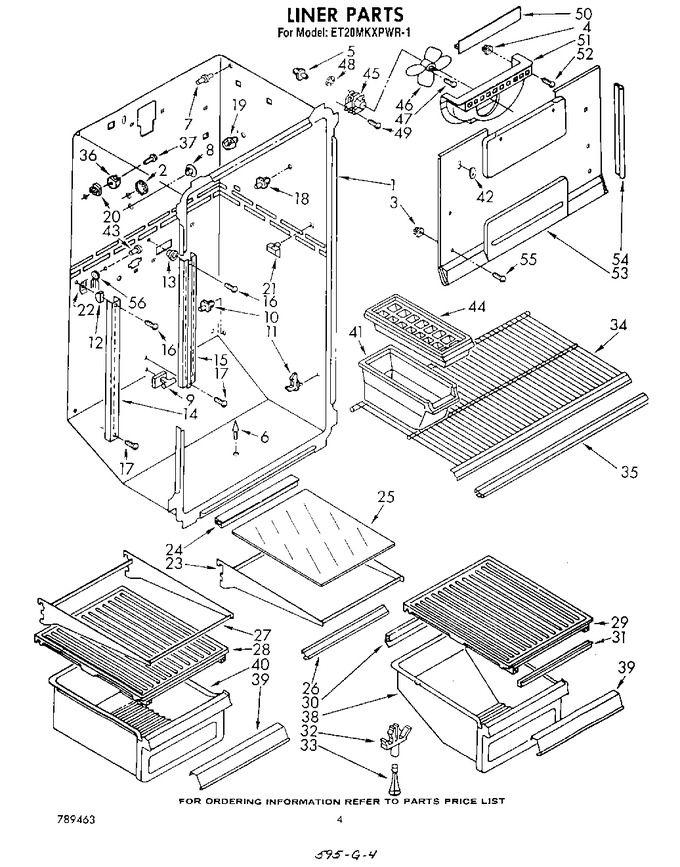

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	519890		Hole, Plug		Appelez-nous	-
3	848445		Grommet		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	845722		Screw, Grommet		Appelez-nous	-
6	836409		Grommet, Crisper Cover		Appelez-nous	-
7	526383		Stud		Appelez-nous	-
8	659598		Hole, Plug		Appelez-nous	-
9	836412		Stud, Support Rear		Appelez-nous	-
10	536475		Shelf, Stud				$ 7.28
11	836423		Shelf, Stud		Appelez-nous	-
12	520965		Screw Support, Ladder (4)				$ 31.35
13	520959		Screw Support, Center Ladder (2)		Appelez-nous	-
14	1106032		Shelf, Ladder (2)		Appelez-nous	-
15	1106033		Shelf, Ladder Center		Appelez-nous	-
16	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
17	488980		Screw (repair)		Appelez-nous	-
17	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
18	529758		Shelf, Stud (2)		Appelez-nous	-
19	523263		Shelf Stud Saddle (r.s.)		Appelez-nous	-
20	538449		Screw Grommet		Appelez-nous	-
21	836374		Retainer, Stud (4)		Appelez-nous	-
22	983604		Screw, Anchor (3)		Appelez-nous	-
23	1106072		Shelf, Cantilever		Appelez-nous	-
24	991328		Retainer, Glass Shelf		Appelez-nous	-
25	1106073		Glass, Shelf		Appelez-nous	-
26	935223		Trim, Shelf		Appelez-nous	-
27	936285		Pan Shelf, Cantilever		Appelez-nous	-
28	1106070		Pan, Cover		Appelez-nous	-
29	1106069		Pan, Cover		Appelez-nous	-
30	942027		Crisper Gasket, Rear		Appelez-nous	-
31	942028		Crisper Gasket, Front		Appelez-nous	-
32	848562		Support, Cover				$ 24.30
33	836410		Post, Cover				$ 5.84
34	981497		Shelf, Freezer		Appelez-nous	-
35	985070		Trim, Shelf		Appelez-nous	-
36	836492		Shelf Stud, Saddle L.s.		Appelez-nous	-
37	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
38	1106042		Pan, Crisper		Appelez-nous	-
39	986316		Overlay, Pan		Appelez-nous	-
40	1106044		Meat, Pan		Appelez-nous	-
41	WP982704		Container, Utility   (Replaces: 1108734)				$ 32.55
42	659776		Hole Plug, Evaporator		Appelez-nous	-
43	850738		Receptacle Cap		Appelez-nous	-
44	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
45	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 79.05
46	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
47	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
48	531933		Grommet (2)				$ 5.70
49	WP488488		Screw, 8 X 15/16 (2)   (Replaces: 488488)				$ 8.52
50	935068		Gasket, Sealing		Appelez-nous	-
51	935067		Scroll, Fan		Appelez-nous	-
52	W11624204		Screw, 8 X 1/2 (4)   (Replaces: 486194)				$ 14.72
53	986624		Cover, Evaporator		Appelez-nous	-
54	981750		Gasket, Evaporator		Appelez-nous	-
55	WP488729		Screw, 8-15 X 1/2 (6)   (Replaces: 488992)			Immediately	$ 8.28
56	481658		Wiring, Ice Maker		Appelez-nous	-
