Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 943173 Refrigerator Door (almond) Appelez-nous -
1 1100310 Refrigerator Door (platinum) Appelez-nous -
1 1100309 Door, Refrigerator (toast) Appelez-nous -
1 943169 Refrigerator Door (white) Appelez-nous -
1 943171 Refrigerator Door (golden Harvest) Appelez-nous -
2 1100197 Hole Plug (platinum) Appelez-nous -
2 534927 Hole Plug (white) Appelez-nous -
2 989197 Hole Plug (almond) Appelez-nous -
2 989879 Hole Plug (golden Harvest) Appelez-nous -
2 1100196 Hole Plug (toast) Appelez-nous -
3 943185 Tap Plate Appelez-nous -
4 944036 Bracket, Door Stop Appelez-nous -
5 WP488921 Screw, 8 X 1/2 (2)   (Replaces: 488921) In-Stock Immediately $ 8.24

6 836117 Retainer, Gasket Side Appelez-nous -
7 836118 Retainer, Gasket Top Appelez-nous -
8 2188450A Door, Gasket Magnetic   (Replaces: 986702) Special Order $ 284.09

9 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

9 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

10 944157 End Cap, Handle (top) Appelez-nous -
11 935103 End Cap, Handle (center) Appelez-nous -
12 1106054 Handle, Center Appelez-nous -
13 935075 Shim, Center Handle Appelez-nous -
14 943188 Spacer, Handle Special Order $ 7.80

15 WP939101 Screw, Anchor   (Replaces: 939101) Special Order $ 7.88

16 488923 Screw (repair) Appelez-nous -
16 WP488920 Screw, 8 X 5/8   (Replaces: 488920) Special Order $ 7.98

18 1106076 Insert, Handle Appelez-nous -
19 482529 Interior Panel Appelez-nous -
20 849802 Support, Door Dike Appelez-nous -
21 1108758 Trim, Door Shelf Appelez-nous -
22 WP849996 Retainer, Door Trim   (Replaces: 849996) Special Order $ 7.95

23 1106052 Compartment Door, Butter Appelez-nous -
24 1108731 Compartment, Utility Appelez-nous -
25 843213 Clip, Medallion Appelez-nous -
26 WP488729 Screw, 8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 8.28

27 1100194 Medallion (toast) Appelez-nous -
27 1100195 Medallion (platinum) Appelez-nous -
27 848382 Medallion (white) Appelez-nous -
27 989903 Medallion (golden Harvest) Appelez-nous -
27 989904 Medallion (almond) Appelez-nous -
28 520747 Tray, Butter Appelez-nous -
29 1100312 Freezer Door (also Order Item 55 When Replaceing Exterior Door) (platinum) Appelez-nous -
29 943177 Freezer Door (also Order Item 55 When Replaceing Exterior Door) (golden Harvest) Appelez-nous -
29 943179 Freezer Door (also Order Item 55 When Replaceing Exterior Door) (almond) Appelez-nous -
29 943175 Freezer Door (also Order Item 55 When Replaceing Exterior Door) (white) Appelez-nous -
29 1100311 Freezer Door (also Order Item 55 When Replaceing Exterior Door) (toast) Appelez-nous -
30 1100188 Hole Plug (toast) Appelez-nous -
30 WP2212648 Hole Plug (white)   (Replaces: 844478) In-Stock Immediately $ 8.19

30 WP2212648 Hole Plug (golden Harvest)   (Replaces: 989893) In-Stock Immediately $ 8.19

30 989196 Hole Plug (almond) Appelez-nous -
30 1100189 Hole Plug (platinum) Appelez-nous -
31 944035 Bracket, Door Stop Appelez-nous -
32 836119 Retainer Gasket Side Appelez-nous -
33 2188460A Door Gasket, Magnetic   (Replaces: 986703) Special Order $ 231.51

34 944163 End Cap, Handle (top) Special Order $ 53.54

35 1106079 Handle, Center Appelez-nous -
38 1103184 Interior, Door F.c. Appelez-nous -
39 1108759 Trim, Door Shelf Appelez-nous -
42 945116 Nameplate Appelez-nous -
43 991259 Tape Strip Appelez-nous -
45 WP8281206 Screw, 8-15 X 1/2   (Replaces: 489028) Special Order $ 8.37

46 935871 Retainer, Insert Appelez-nous -
47 1105805 Shim, End Cap (bottom) Appelez-nous -
48 1105804 Endcap, Insert Retainer Appelez-nous -
49 WPW10141645 Screw, 8 X 1/2   (Replaces: 489084) Special Order $ 8.05

50 1106148 Trim, Door Appelez-nous -
51 1106059 Insert, Handle (top) Appelez-nous -
52 935074 Shim, End Cap (side) Appelez-nous -
53 489022 Screw, 6-20 X 3/8 (2) Appelez-nous -
54 943187 Shim, Handle Special Order $ 25.14

55 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
55 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

55 479502 Tape, Vinyl (1/4`` X 108``) Special Order $ 66.77

55 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

55 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

55 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

55 876370 Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

55 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

55 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

55 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

55 350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

55 876370 Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) Special Order $ 243.14

55 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

55 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

55 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
55 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
55 350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

55 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
55 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

55 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

55 261890 Xenamel, Golden Harvest (13 Oz. Spray Can) Appelez-nous -
55 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
55 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
55 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

55 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
55 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

55 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
55 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

55 799351 Blend, Thinner (1 Gal.) Appelez-nous -
55 261891 Enamel, Golden Harvest (1 Qt. Uncut) Appelez-nous -
55 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
55 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
55 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
LIT1106083 Energy Label Appelez-nous -
LIT946646 Service & Wiring Sheet Appelez-nous -
LIT789463 List, Parts Appelez-nous -
LIT1106081 Care & Use Guide Appelez-nous -

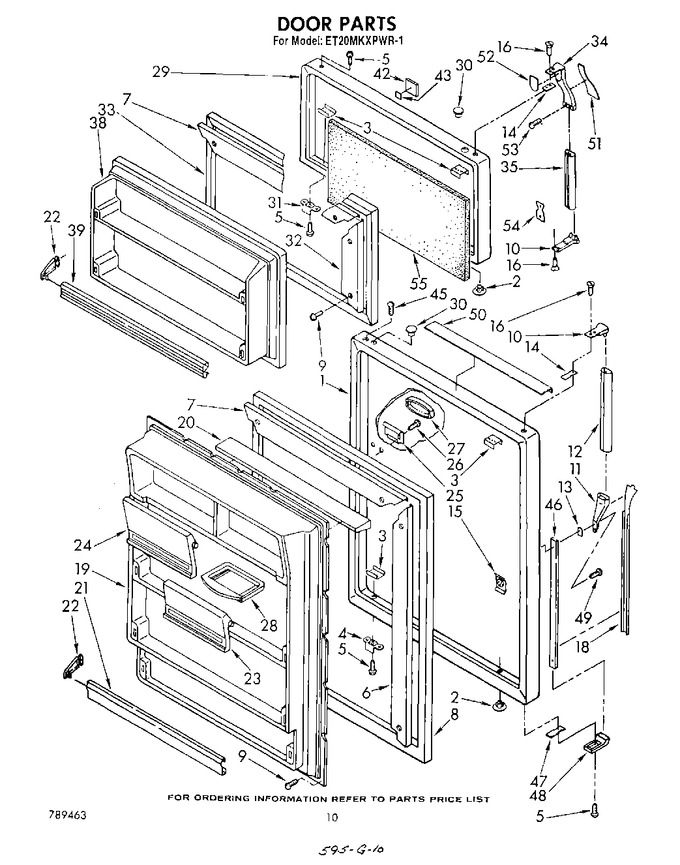

    View Diagram in Separate Window     Print Icon   Print Part List
