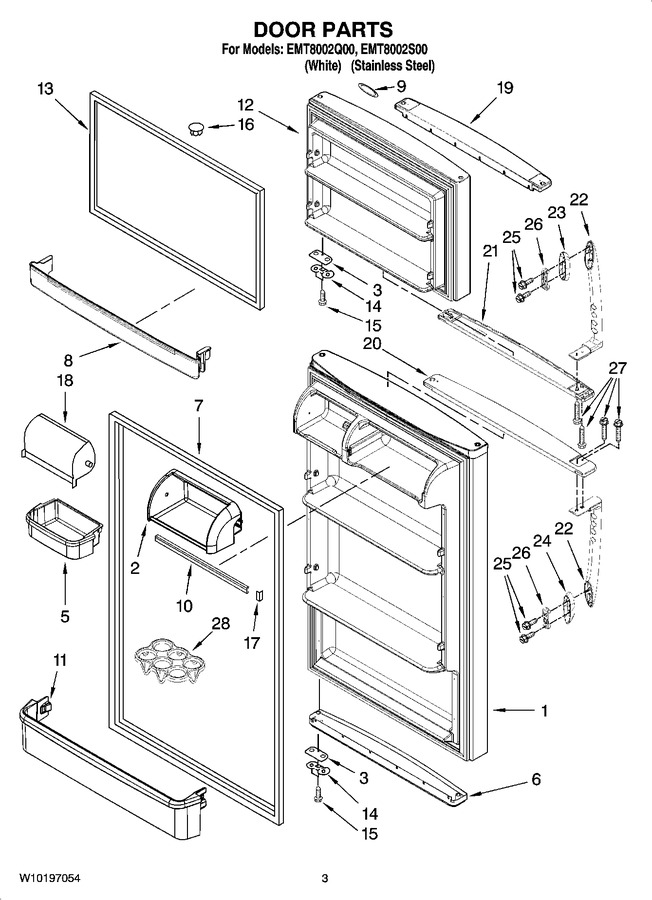

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2325620S | Refrigerator Door (includes Items 6 & 7) (stainless Steel) |
|
- | |||||
| 1 | 2325620W | Refrigerator Door (includes Items 6 & 7) (white) |
|
- | |||||
| 2 | 2264477 | Utility Comprtmnt. (Replaces: 2266057) |
|
$ 97.04 | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 5 | 2324026 | Bin-door (3) |
|
- | |||||
| 6 | 2265647W | Endcap, Bottom-rc (white) |
|
$ 63.82 | |||||
| 6 | 2222048 | Endcap, Bottom-rc (black) |
|
- | |||||
| 7 | WP2319264W | Door Gasket,rc (white) (Replaces: 2264727) |
|
Immediately | $ 329.08 | ||||
| 7 | WP2319264B | Door Gasket,rc (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 8 | 2324028 | Trivet (fc) |
|
- | |||||
| 9 | 2324038 | Nameplate |
|
$ 71.59 | |||||
| 10 | 2316061 | Trim, Door Shelf |
|
- | |||||
| 11 | 2324027 | Trivet (rc) |
|
- | |||||
| 12 | 2325621S | Freezer Door (includes Items 13 & 19) (stainless Steel) |
|
- | |||||
| 12 | 2325621W | Freezer Door (includes Items 13 & 19) (white) |
|
- | |||||
| 13 | WP2319263B | Door Gasket, Fc (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 13 | WP2319263W | Door Gasket, Fc (white) (Replaces: 2264726) |
|
Immediately | $ 151.03 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 16 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 17 | WP2156007 | Plug-trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 18 | 2324037 | Compartment Door |
|
- | |||||
| 19 | 2252863 | Endcap, Top (fc) (black) |
|
Immediately | $ 155.53 | ||||
| 19 | 2265644W | Endcap, Top (fc) (white) |
|
$ 148.05 | |||||
| 20 | 2263293B | End Cap-handle-rc (black) |
|
- | |||||
| 20 | 2319201W | End Cap-handle-rc (white) |
|
- | |||||
| 21 | 2263292B | End Cap-handle-fc (black) |
|
- | |||||
| 21 | 2319200W | End Cap-handle-fc (white) |
|
- | |||||
| 22 | 2325603W | Handle-rc & Fc (white) |
|
- | |||||
| 22 | 2325603B | Handle-rc & Fc (black) |
|
- | |||||
| 23 | 2325605W | Collar-handle (fc), White |
|
- | |||||
| 23 | 2325605B | Collar-handle (fc), Black |
|
- | |||||
| 24 | 2325607W | Collar-handle (rc), White |
|
- | |||||
| 24 | 2325607B | Collar-handle (rc), Black |
|
- | |||||
| 25 | W10122125 | Screw |
|
- | |||||
| 26 | WP2255411 | Clip-handle-mtng. (Replaces: 2255411) |
|
$ 36.55 | |||||
| 27 | 8534058 | Screw |
|
$ 8.87 | |||||
| 28 | 2219124 | Egg Rack |
|
- |
