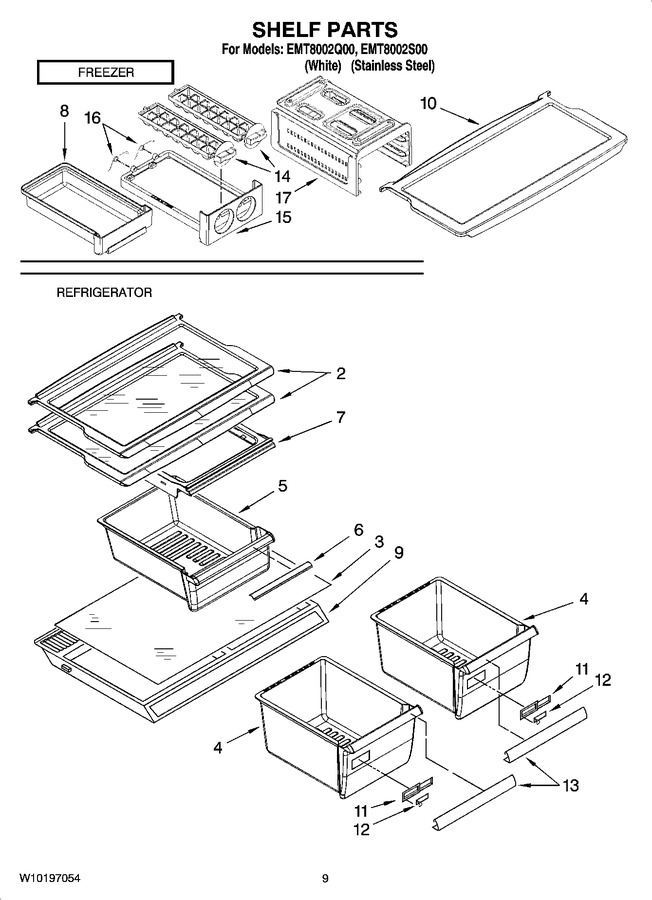

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2324065 | Shelf (2) |
|
- | |||||
| 3 | WP2262441 | Glass Cover (Replaces: 2324035) |
|
Immediately | $ 232.92 | ||||
| 4 | WP2256704 | Crisper Pan (Replaces: 2256704) |
|
Immediately | $ 141.67 | ||||
| 5 | WP2261934 | Pan, Meat (includes Item 6) (Replaces: 2261934) |
|
Immediately | $ 151.19 | ||||
| 6 | 2324034 | Trim, Meat Pan |
|
- | |||||
| 7 | WP2256601 | Cover, Pan (Replaces: 2256601) |
|
$ 180.21 | |||||
| 8 | 2265627 | Pan-ice Tray |
|
- | |||||
| 9 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 260.25 | ||||
| 10 | WPW10283860 | Shelf Assy-frzr. (Replaces: 2264803) |
|
$ 280.70 | |||||
| 11 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 12 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 13 | 2324031 | Trim, Crisper Pan |
|
- | |||||
| 14 | W10225160 | Ice Tray (Replaces: 2265738) |
|
- | |||||
| 15 | W10225160 | Support-ice Tray (Replaces: 2265368) |
|
- | |||||
| 16 | 2265629 | Spring, Twist Ice |
|
- | |||||
| 17 | 2265367 | Twist Ice Support |
|
- | |||||
| NI | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| NI | 799832 | Kit, Porcelain Repair (white) |
|
- | |||||
| NI | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | |||||
| NI | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| NI | 350930 | Enamel, White (12 Oz. Spray Can) |
|
Immediately | $ 40.12 | ||||
| NI | 4392899 | Brush Touch-up Kit (biscuit) |
|
Immediately | $ 27.77 | ||||
| NI | 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | |||||
| NI | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| NI | 4392900 | Enamel, Biscuit (1 Qt. Uncut) |
|
- | |||||
| NI | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| NI | WPW10190943 | Field Installable Ice Maker (4eckmf87) (Replaces: 2155304) |
|
$ 397.04 | |||||
| NI | 1117510 | Torx Key |
|
$ 5.84 | |||||
| NI | 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | ||||
| NI | 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | ||||
| NI | 4392901 | Enamel, Biscuit (12 Oz. Spray Can) |
|
- | |||||
| NI | WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| NI | 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | |||||
| NI | WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| NI | WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| NI | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| NI | 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| NI | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| NI | 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | |||||
| NI | 876370 | Kit, Insulation (2 Pcs.3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| NI | 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | |||||
| NI | 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 51.75 | |||||
| NI | 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 82.37 |
