SELECT A DIAGRAM

01 - Cabinet


02 - Door

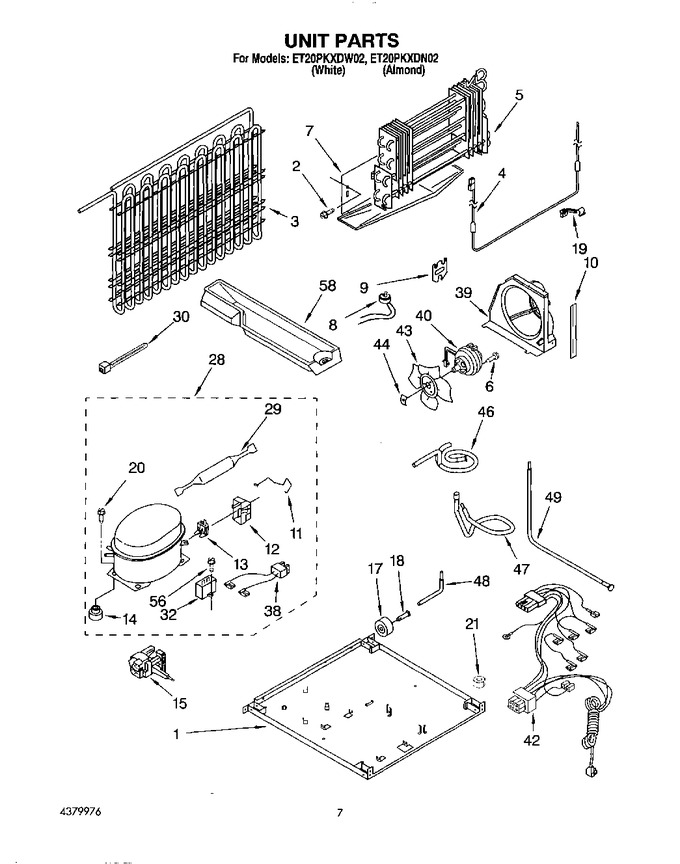

03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2182403		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489242)				$ 7.75
3	2179882		Condenser		Appelez-nous	-
4	WP2315530		Heater, Defrost   (Replaces: 2166124)				$ 160.18
5	2166209		Evaporator Assy.		Appelez-nous	-
6	489414		Screw		Appelez-nous	-
7	2172620		Drain Pan		Appelez-nous	-
8	WP4387503		Defrost Bimetal   (Replaces: 2182380)			Immediately	$ 47.89
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	2169464		Clamp (production Only)		Appelez-nous	-
12	WP2162358		Cover (service Only)   (Replaces: 2162358)				$ 90.75
13	4387535		Overload (service)   (Replaces: 2154760)				$ 181.95
13	2169407		Overload (production)		Appelez-nous	-
14	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 7.42
14	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 14.49
15	2169337		Module		Appelez-nous	-
17	2163782		Roller (2)		Appelez-nous	-
18	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	W11661574		Screw   (Replaces: 489473)				$ 13.61
21	N/A		Nut (not Serviced)		Appelez-nous	-
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 86.33
28	W10309989		Compressor (includes Items 11, 12, 13, 14, 20, 29, 32, 38 And 56) (also Order)   (Replaces: 2169403)			Immediately	$ 656.96
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
32	WPW10662129		Capacitor (production Comp.)   (Replaces: 2169373)			Immediately	$ 58.86
32	2169137		Capacitor (service Comp.)		Appelez-nous	-
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.10
39	2182395		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2176336)			Immediately	$ 221.30
42	2182379		Wire Assy., Unit		Appelez-nous	-
43	851732		Fan, Blade		Appelez-nous	-
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
46	2179884		Tube, Discharge		Appelez-nous	-
47	2179779		Tube, Suction		Appelez-nous	-
48	2154109		Tube, Process				$ 72.63
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
56	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
58	482278		Start Kit		Appelez-nous	-
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	2176276		Tray, Evaporator		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
