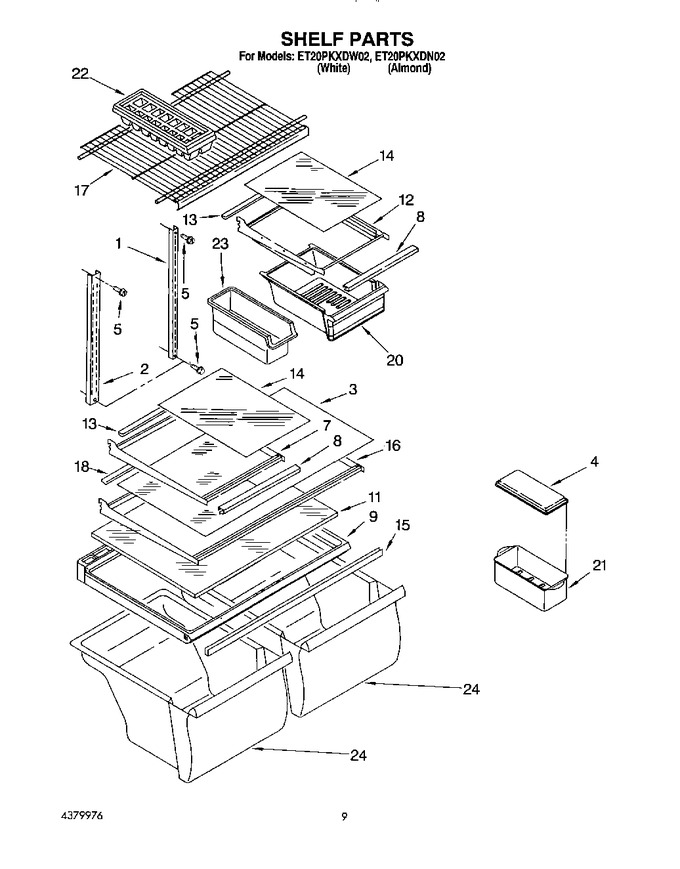

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	2166217		Glass, Full Shelf		Appelez-nous	-
4	2170949		Cover, Egg Bin		Appelez-nous	-
5	W11544659		Screw   (Replaces: 489415)				$ 13.67
7	2163860		Shelf, Cantilever		Appelez-nous	-
8	2176263		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2176213)				$ 265.81
11	WP2176225		Insert, Crisper Cover   (Replaces: 2163843)				$ 251.82
12	2176306		Pan Shelf, Cantilever		Appelez-nous	-
13	2163883		Trim, Shelf Rear		Appelez-nous	-
14	2166218		Glass, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
16	2163863		Shelf, Full Cantilever		Appelez-nous	-
17	2163830		Shelf, Freezer		Appelez-nous	-
18	2163885		Trim, Shelf Rear		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2172650)			Immediately	$ 159.64
21	W10136387A		Egg Bin   (Replaces: 2166748)				$ 18.61
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
23	WP982704		Container   (Replaces: 1116917)				$ 31.00
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
24	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
24	833938		Kit, Terminal Connector				$ 8.07
24	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
24	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
24	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
24	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
24	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
24	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
24	W10854037		Pan, Crisper   (Replaces: 2170954)			Immediately	$ 170.66
24	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
24	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
24	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
24	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
24	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
24	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
24	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
24	2172516		Door Reversal Instructions		Appelez-nous	-
24	350942		Primer White (13 Oz. Spray Can)				$ 89.66
24	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2180401		Use & Care Guide		Appelez-nous	-
	LIT2182509		Energy Hang Tag		Appelez-nous	-
	LIT2172667		Service & Wiring Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
