SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Fz Door Parts


03 - Interior Parts


04 - Page 3


05 - Page 5


06 - Page 6


07 - Page 7


08 - Ref Door Parts

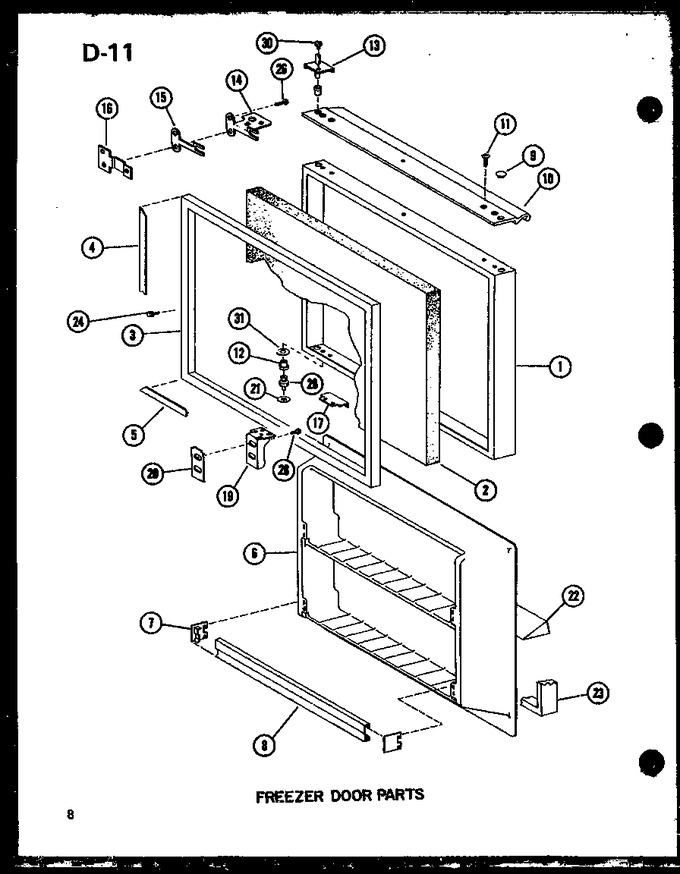

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8828101		Door Fr-w-t-esbfc16d		Appelez-nous	-
1	C8828102		Door Fr-c-t-esbfc16d		Appelez-nous	-
1	C8828103		Door Fr-a-t-esbfc16d		Appelez-nous	-
1	C8828104		Dr Fr G-t Esbfc16d		Appelez-nous	-
1	C8828105		Door Fr L-t-esbfc16d		Appelez-nous	-
2	D7304501		Foam Slab-fr Door		Appelez-nous	-
3	D3928224		Gasket		Appelez-nous	-
4	D3928120		Retainer-gasket		Appelez-nous	-
5	D3928118		Retainer-gasket		Appelez-nous	-
6	D7296602		Inner Dr Panel		Appelez-nous	-
7	C8774403		Support-retainer Rh		Appelez-nous	-
7	C8774404		Support-retainer Lh		Appelez-nous	-
8	D7415712		Retainer-pkg		Appelez-nous	-
9	M0310610		Plug		Appelez-nous	-
10	C8771002		Handle		Appelez-nous	-
11	M0205631		Machine Screw		Appelez-nous	-
12	C3652901		Bushing, Hinge Pin		Appelez-nous	-
13	B5750901		Center Hinge Assy		Appelez-nous	-
14	C8800201		Center Hinge Assy		Appelez-nous	-
15	A3143501		Shim K		Appelez-nous	-
15	A3143502		Shim K		Appelez-nous	-
15	A3143503		Shim K		Appelez-nous	-
16	B5740902		Kit, Tap Plate & Screw		Appelez-nous	-
17	A3197801		Stop Door		Appelez-nous	-
19	C8814801		Bracket Lower Hinge		Appelez-nous	-
20	B5744803		Shim		Appelez-nous	-
20	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
20	B5744802		Shim		Appelez-nous	-
21	B5779601		Washer Hinge K		Appelez-nous	-
22	B5629037		Insulation		Appelez-nous	-
23	B0523563		Insulation Ft. K		Appelez-nous	-
24	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
26	M0226831		Screw		Appelez-nous	-
28	M0246159		Screw		Appelez-nous	-
29	C8814901		Pin, Hinge K		Appelez-nous	-
30	M0205441		Screw K		Appelez-nous	-
31	M0274013		Washer K		Appelez-nous	-
31	M0274014		Washer K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
