SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Fz Door Parts


03 - Interior Parts


04 - Page 3


05 - Page 5


06 - Page 6


07 - Page 7


08 - Ref Door Parts

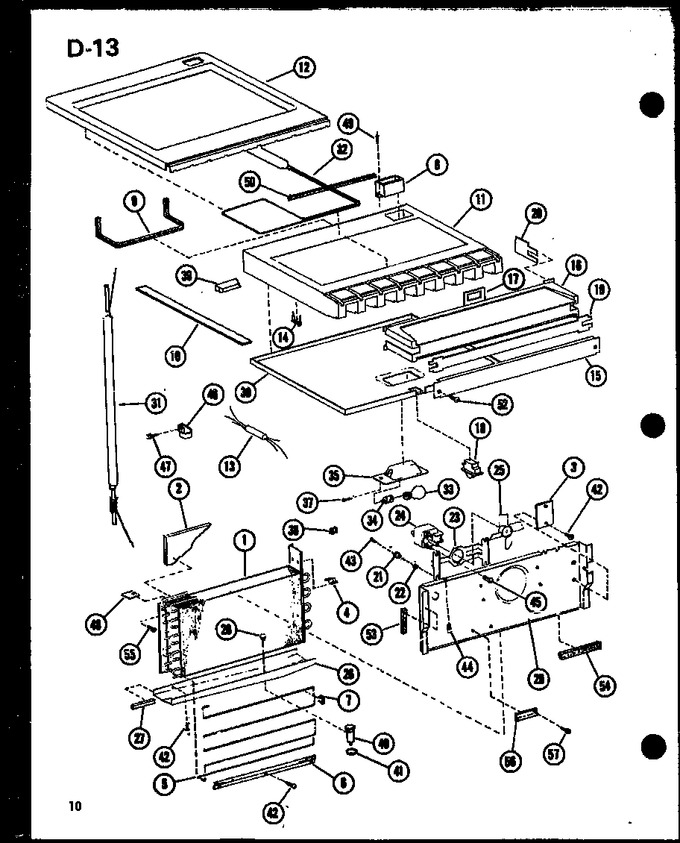

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7321801		Evaporator		Appelez-nous	-
2	B5692303		Gasket-evap		Appelez-nous	-
3	B5762302		Terminal Board		Appelez-nous	-
4	C8770402		Thermostat		Appelez-nous	-
5	D7295601		Heater-evap		Appelez-nous	-
6	B5763101		Clamp-heat		Appelez-nous	-
7	M0110301		Clip		Appelez-nous	-
8	B5762501		Air Duct		Appelez-nous	-
9	M0900204		Gasket-per Ft		Appelez-nous	-
10	B5757701		Gasket, Sealing, Divider Block		Appelez-nous	-
11	D7327101		Foam Block Assy		Appelez-nous	-
12	D7296001		Bottom-ref		Appelez-nous	-
13	D7300101		Wiring Harness		Appelez-nous	-
14	A3195601		Clamp-wiring		Appelez-nous	-
15	C8807102		Ctr Mullion C		Appelez-nous	-
15	C8807101		Center Mullion, White		Appelez-nous	-
15	C8807103		Ctr Mullion A		Appelez-nous	-
15	C8807104		Ctr Mullion-g		Appelez-nous	-
15	C8807105		Center Mull.-pnt		Appelez-nous	-
16	D7296901		Breaker-mullion		Appelez-nous	-
17	B5770801		Barrier-mullion		Appelez-nous	-
18	18814		Switch, Light   (Replaces: C3680305)				$ 39.44
19	C8777701		Center Heater Kit		Appelez-nous	-
20	B5763701		Gasket-mullion		Appelez-nous	-
21	YA0381501		Clip, Waterline		Appelez-nous	-
22	A0381401		Eyelet K		Appelez-nous	-
23	C3681601		Bracket		Appelez-nous	-
24	D7241406		Motor		Appelez-nous	-
25	B5739301		Fan Blade		Appelez-nous	-
26	D7296801		Drip Tray		Appelez-nous	-
27	B5764901		Gasket		Appelez-nous	-
28	A3113702		Drain Screen		Appelez-nous	-
29	D7296701		Orifice Plate		Appelez-nous	-
30	D7296301		Top-fr		Appelez-nous	-
31	D7324802		Heat Ex		Appelez-nous	-
32	D7374201		Hot Gas Loop		Appelez-nous	-
33	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
34	C8708801		Socket-light		Appelez-nous	-
35	C8758501		Housing-light		Appelez-nous	-
37	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
38	B5733302		Clip, Ground		Appelez-nous	-
39	B5757804		Gasket, Sealing		Appelez-nous	-
40	B5758502		Drain Tube		Appelez-nous	-
41	B5766401		Plug Button		Appelez-nous	-
42	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38
43	M0233106		Screw		Appelez-nous	-
44	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38
45	WP3400094		Screw   (Replaces: M0258055)				$ 9.26
46	M0117701		Clip		Appelez-nous	-
47	M0210916		Screw		Appelez-nous	-
48	B5771301		Cover-evap Block		Appelez-nous	-
49	A4539602		Pop Rivet		Appelez-nous	-
50	B5757805		Gasket K		Appelez-nous	-
51	M0236721		Screw K		Appelez-nous	-
52	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
53	A3030301		Gasket (inch)		Appelez-nous	-
54	M0900204		Gasket-per Ft		Appelez-nous	-
55	M0212932		Screw		Appelez-nous	-
56	B5754001		Clamp, Control Bulb		Appelez-nous	-
57	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38

    View Diagram in Separate Window       Print Part List
