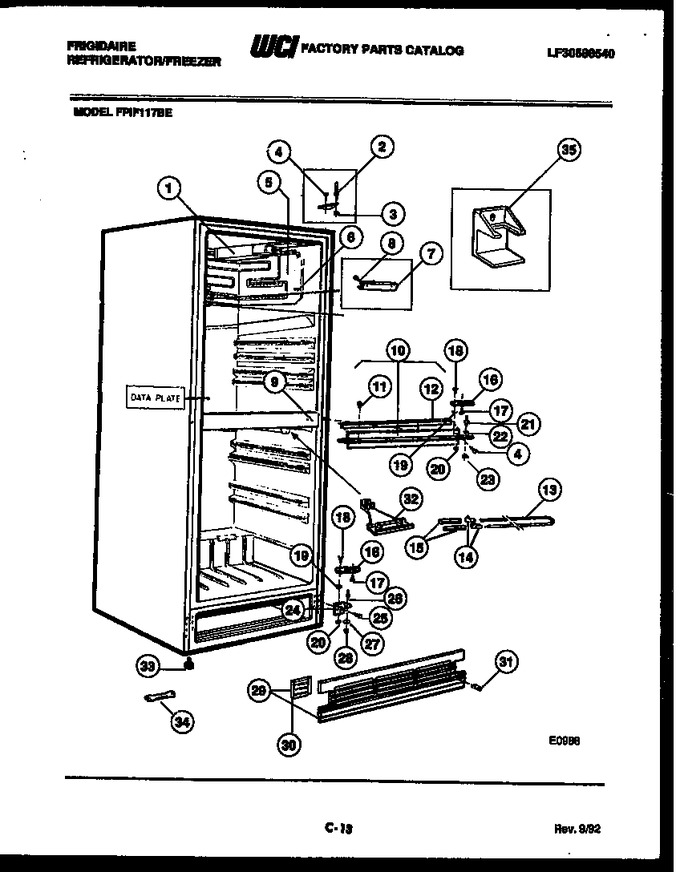

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3015492		Hinge Pin Upper Black		Appelez-nous	-
3	3015494		Nut M5 Zincfied		Appelez-nous	-
4	3015731		Screw M5 X 14 Zincfied		Appelez-nous	-
5	3015756		Evaporator		Appelez-nous	-
6	3015740		Retainer		Appelez-nous	-
7	3015733		Clip Bulb		Appelez-nous	-
8	3015916		Screw		Appelez-nous	-
9	3015893		Panel		Appelez-nous	-
10	3015890		Panel		Appelez-nous	-
11	3015498		Plug-black		Appelez-nous	-
12	3015891		Gasket		Appelez-nous	-
13	3015546		Heater Defrost		Appelez-nous	-
14	3015547		Coupling		Appelez-nous	-
15	3015548		Hose		Appelez-nous	-
16	3015512		Door Stop Complete		Appelez-nous	-
17	3015513		Screw		Appelez-nous	-
18	3015881		Screw		Appelez-nous	-
19	3015515		Washer		Appelez-nous	-
20	3015516		Nut		Appelez-nous	-
21	3015499		Hinge Pin Middle Black		Appelez-nous	-
22	3015500		Spacer Nut		Appelez-nous	-
23	3015494		Nut M6 Black		Appelez-nous	-
24	3015509		Hinge Lower Black		Appelez-nous	-
25	3015918		Screw Rx 5 X 16		Appelez-nous	-
26	3015503		Hinge Pin Lower Black		Appelez-nous	-
27	3015893		Washer		Appelez-nous	-
28	3015517		Nut		Appelez-nous	-
29	3015506		Ventilation Grid Black		Appelez-nous	-
30	3015507		Filling		Appelez-nous	-
31	3015508		Lock Eccentric Black		Appelez-nous	-
32	3015887		Support Flap		Appelez-nous	-
33	3015505		Foot Adjustable		Appelez-nous	-
34	3015501		Wrench		Appelez-nous	-
35	3015504		Cap		Appelez-nous	-
