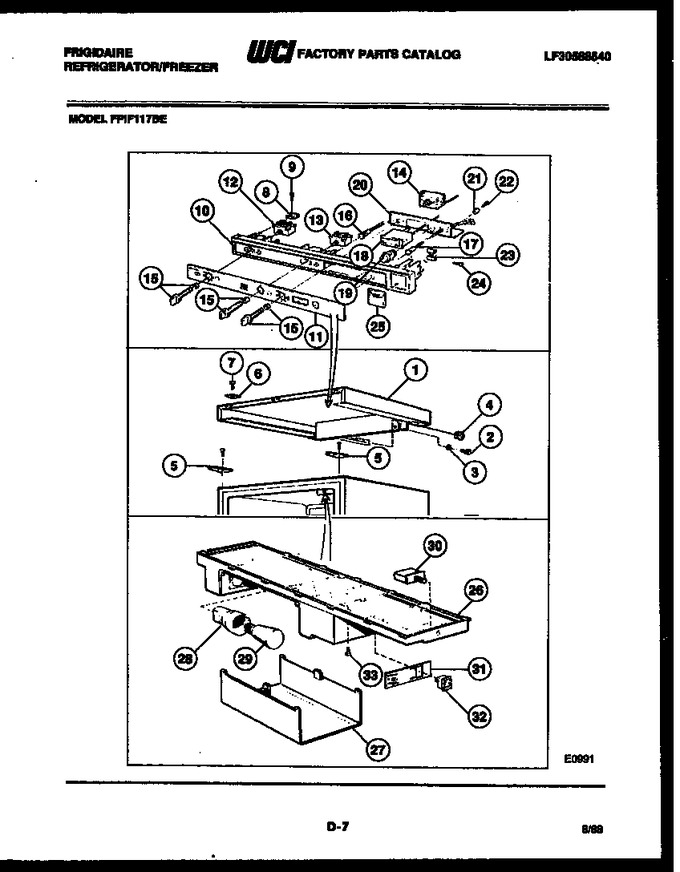

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015518		Top-white		Appelez-nous	-
2	3015928		Screw Kfxs B8 X 12 Stainless		Appelez-nous	-
3	3015522		Washer Lock 4, 3 Zincified		Appelez-nous	-
4	3015523		Bushing		Appelez-nous	-
5	3015524		Hinge-arm		Appelez-nous	-
6	3015883		Washer Almond		Appelez-nous	-
6	3015882		Washer White		Appelez-nous	-
7	3015928		Screw Kfx B8 X 12 Stainless		Appelez-nous	-
8	3015525		Mounting Plate		Appelez-nous	-
9	3015927		Screw Kfx B6 X 12 Stainless		Appelez-nous	-
10	3015784		Panel		Appelez-nous	-
11	3015786		Trim		Appelez-nous	-
12	3015879		Thermostat		Appelez-nous	-
13	3015538		Switch		Appelez-nous	-
14	3015889		Thermostat				$ 223.69
15	3015530		Knob Thermostat Black		Appelez-nous	-
16	3015532		Lamp Green 110v		Appelez-nous	-
17	3015531		Lamp Yellow 110v		Appelez-nous	-
18	3015537		Thermometer		Appelez-nous	-
19	3015536		Switch		Appelez-nous	-
20	3015542		Retainer		Appelez-nous	-
21	3015543		Bushing		Appelez-nous	-
22	3015544		Screw 3.5 X 12 Zincified		Appelez-nous	-
23	3015534		Clip		Appelez-nous	-
24	3015535		Screw Rxs B6 X 16 Stainless		Appelez-nous	-
25	3015533		Sign Plate		Appelez-nous	-
26	3015778		Cover Thermostat		Appelez-nous	-
27	3015779		Cover Bulb		Appelez-nous	-
28	3015540		Socket Bulb		Appelez-nous	-
29	3015541		Bulb E14, 115v, 15w		Appelez-nous	-
30	3015781		Switch Light		Appelez-nous	-
31	3015754		Plate Operating		Appelez-nous	-
32	3015752		Switch		Appelez-nous	-
33	3015925		Screw Rxs B8 X 10 Stainless		Appelez-nous	-
1A	3015519		Top-beige		Appelez-nous	-
1B	3015520		Top-brown		Appelez-nous	-
6A	3015884		Washer Gazelle		Appelez-nous	-
