Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2159160 Panel, Freezer Door (also Order Item 21) (white) Appelez-nous -
1 2161870 Panel, Freezer Door (also Order Item 21) (black) Appelez-nous -
1 2159163 Panel, Freezer Door (also Order Item 21) (almond) Appelez-nous -
2 1110485 Hole Plug (2) (black) Appelez-nous -
2 989197 Hole Plug (2) (almond) Appelez-nous -
2 534927 Hole Plug (2) (white) Appelez-nous -
3 943185 Plate, Tap (4) Appelez-nous -
4 944035 Bracket, Door Stop Appelez-nous -
5 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 8.24

6 WP8281206 Screw   (Replaces: 489028) Special Order $ 8.37

7 989196 Hole Plug (almond) Appelez-nous -
7 WP2212648 Hole Plug (white)   (Replaces: 844478) In-Stock Immediately $ 8.19

7 WP2212651 Hole Plug (black)   (Replaces: 2160808) Special Order $ 24.21

8 2170599 Door Gasket Magnetic (black Model) Appelez-nous -
8 2188460A Door Gasket Magnetic (white Model)   (Replaces: 2148567) Special Order $ 231.51

8 2188460A Door Gasket Magnetic (almond Model)   (Replaces: 1122831) Special Order $ 231.51

9 WP489442 Screw, 7 X 1/2   (Replaces: 489442) In-Stock Immediately $ 11.49

9 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

10 2179305 Handle End, Top (white) Appelez-nous -
10 2179307 Handle End, Top (black) Appelez-nous -
10 2179306 Handle End, Top (almond) Appelez-nous -
12 2174435 Plug, Hole (black) Appelez-nous -
12 2174433 Plug, Hole (white) Appelez-nous -
12 2174434 Plug, Hole (almond) Appelez-nous -
13 2151813 Shim, Handle Appelez-nous -
15 1122575 Interior Door Panel Appelez-nous -
16 WP488920 Screw, 8 X 5/8   (Replaces: 489006) Special Order $ 7.98

17 2171403 Trim, Door Shelf (2) Appelez-nous -
20 1122552 Retainer, Gasket Appelez-nous -
21 876029 Kit, Foam Slab (required When Replacing Exterior Door Panel) Appelez-nous -
22 4386917 End Cap, Trim (4)   (Replaces: 1105685) In-Stock Immediately $ 18.90

26 1123293 Divider, Door Shelf (2) Appelez-nous -
27 1122553 Retainer, Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

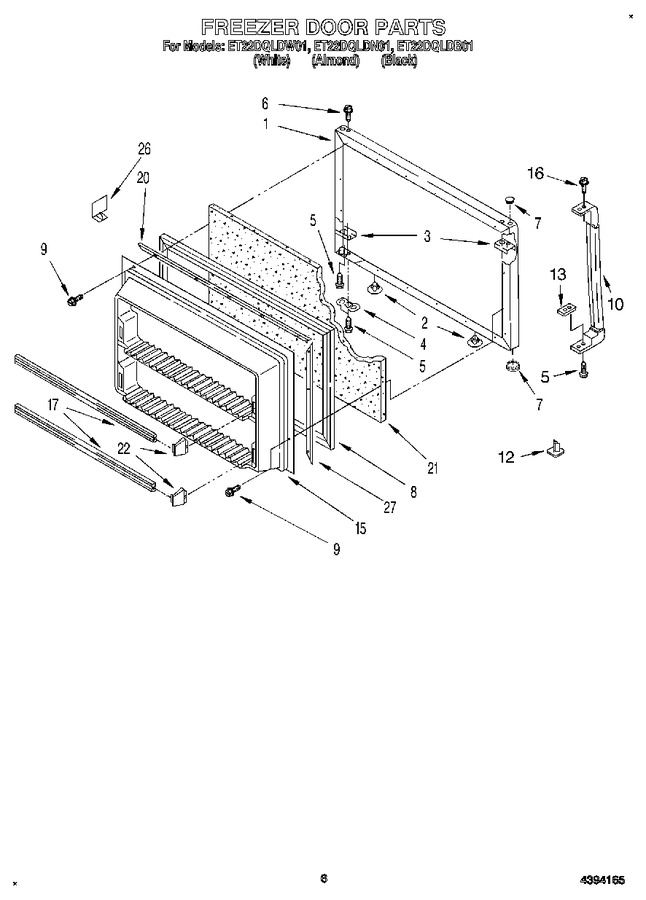

Diagram for ET22DQLDW01
