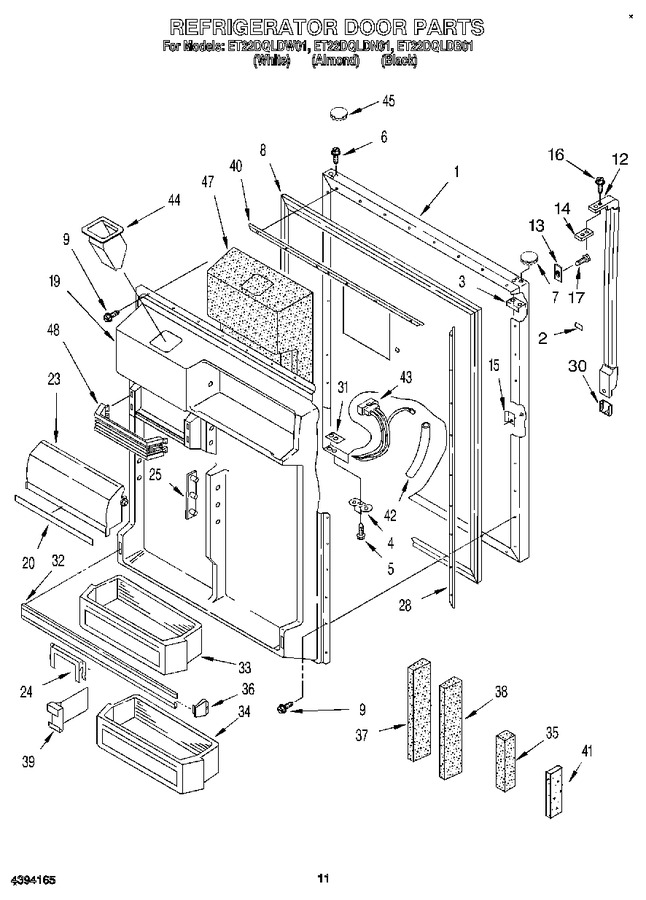

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2169040		Panel, Refrigerator Door (includes Insulation) (almond)		Appelez-nous	-
1	2169039		Panel, Refrigerator Door (includes Insulation) (white)		Appelez-nous	-
1	2169041		Panel, Refrigerator Door (includes Insulation) (black)		Appelez-nous	-
2	2179398		Shim, Handle		Appelez-nous	-
3	943185		Plate, Tap (2)		Appelez-nous	-
4	2155332		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2170598		Door Gasket, Magnetic (black Model)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic (whitemodel)   (Replaces: 2148565)				$ 284.09
8	2188450A		Door Gasket, Magnetic (almond Model)   (Replaces: 1122828)				$ 284.09
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
12	2179311		Handle, Door (white)		Appelez-nous	-
12	2179312		Handle, Door (almond)		Appelez-nous	-
12	2179313		Handle, Door (black)		Appelez-nous	-
13	2183124		Shim, Handle		Appelez-nous	-
14	2151813		Spacer, Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
19	2177318		Interior Door Panel		Appelez-nous	-
20	2162896		Trim, Door Compartment		Appelez-nous	-
23	2148289		Compartment Door Left Side		Appelez-nous	-
24	2173643		Retainer, Bottle		Appelez-nous	-
25	1118048		Pin Plate (2)		Appelez-nous	-
25	1116986		Pin Plate (4)				$ 12.10
28	1122551		Retainer, Gasket		Appelez-nous	-
30	2174007		Cover, End Cap (almond)		Appelez-nous	-
30	2174008		Cover, Endcap (black)		Appelez-nous	-
30	2174006		Cover, Endcap (white)		Appelez-nous	-
31	2155335		Tap, Plate		Appelez-nous	-
32	2171402		Trim, Door Shelf		Appelez-nous	-
33	WPW10321304		Bin, Door Shelf   (Replaces: 2179607)			Immediately	$ 44.73
34	2179604		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	1122710		Side Door Dike		Appelez-nous	-
36	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
37	1122712		Door Dike, Center		Appelez-nous	-
38	1122709		Door Dike, Side (2)		Appelez-nous	-
39	2171284		Divider, Bin		Appelez-nous	-
40	1122552		Retainer, Gasket		Appelez-nous	-
41	2168583		Support, Pin Plate		Appelez-nous	-
42	2169027		Tube, Door Wiring		Appelez-nous	-
43	2169003		Plug, Crossover		Appelez-nous	-
44	2160684		Ice Chute		Appelez-nous	-
45	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
45	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 7.61
45	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
47	2160683		Insulation, Dispenser		Appelez-nous	-
48	2169749		Trim-door Shelf		Appelez-nous	-
