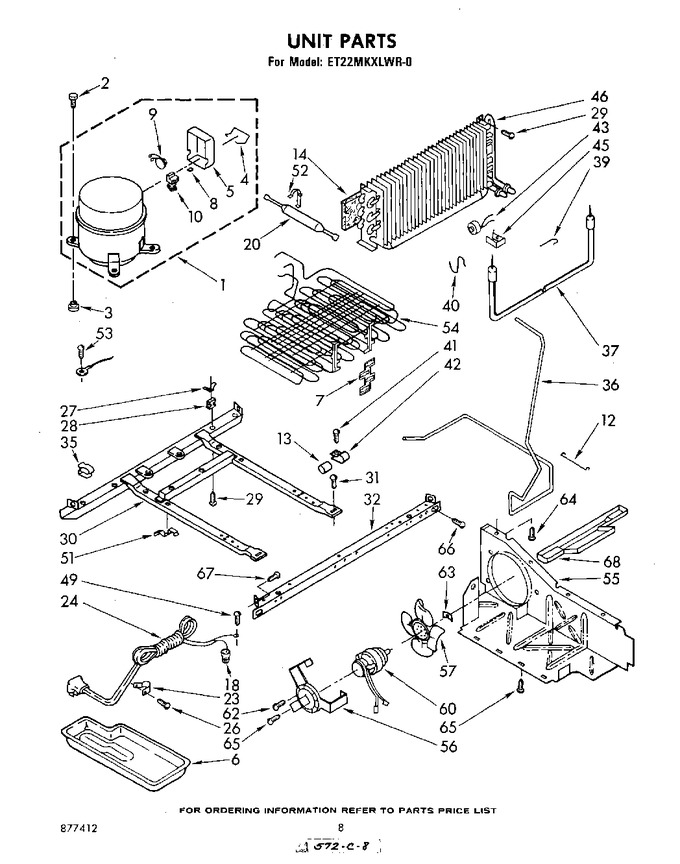

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	876639		Compressor Kit (includes Items 4, 5, 8, 9, 10)		Appelez-nous	-
2	488400		Screw (4)		Appelez-nous	-
3	547283		Grommet (4)		Appelez-nous	-
4	531318		Spring		Appelez-nous	-
5	549945		Case, Relay		Appelez-nous	-
6	849331		Tray, Evaporator		Appelez-nous	-
7	987210		Spacer Condenser (4)		Appelez-nous	-
8	547272		Bumper		Appelez-nous	-
9	941583		Overload (used With Original Compressor)		Appelez-nous	-
9	941639		Overload (used W/service Compressor)		Appelez-nous	-
10	938263		Relay		Appelez-nous	-
12	850156		Guard, Fan		Appelez-nous	-
13	510769		Dampener (2)		Appelez-nous	-
14	981736		Baffle, Air		Appelez-nous	-
18	227991		Wire Connector		Appelez-nous	-
20	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
23	549193		Clamp-cord				$ 14.06
24	850626		Cord, Service		Appelez-nous	-
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
27	548738		Clamp (4)		Appelez-nous	-
28	548737		Grommet (4)		Appelez-nous	-
29	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
30	936079		Frame		Appelez-nous	-
31	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
32	548662		Rail, Front		Appelez-nous	-
35	548745		Clip, Wire (2)		Appelez-nous	-
36	941693		Exchanger, Heat		Appelez-nous	-
37	992911		Heater, Defrost		Appelez-nous	-
39	850721		Clip, Heater (2)		Appelez-nous	-
40	851358		Support, Heater		Appelez-nous	-
41	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
42	510716		Clamp (2)		Appelez-nous	-
43	WP4387489		Bimetal, Defrost (alternate)   (Replaces: 851891)				$ 108.99
43	WP4387489		Bimetal, Defrost   (Replaces: 851890)				$ 108.99
45	513584		Clamp		Appelez-nous	-
46	989301		Evaporator		Appelez-nous	-
49	488474		Screw		Appelez-nous	-
51	548744		Clip, Cover (2)		Appelez-nous	-
52	548508		Clamp		Appelez-nous	-
53	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
54	481851		Condenser & Precooler		Appelez-nous	-
55	850391		Baffle		Appelez-nous	-
56	548695		Bracket		Appelez-nous	-
57	989524		Fan		Appelez-nous	-
60	833697		Motor   (Replaces: 945583)			Immediately	$ 109.14
62	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
63	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
64	488978		Screw, 8-15 X 3/8		Appelez-nous	-
65	488624		Screw, 8 X 3/8		Appelez-nous	-
66	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
67	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488964)			Immediately	$ 8.28
68	876764		Valve, Access(3/16``)			Immediately	$ 95.92
68	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
68	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
68	978028		Valve, Access (1/2)		Appelez-nous	-
68	978029		Valve Access (5/8``)				$ 93.85
68	978030		Valve, Access (3/4``)				$ 137.25
68	989269		Pan, Drip		Appelez-nous	-
68	978026		Valve, Access (5/16``)			Immediately	$ 134.49
