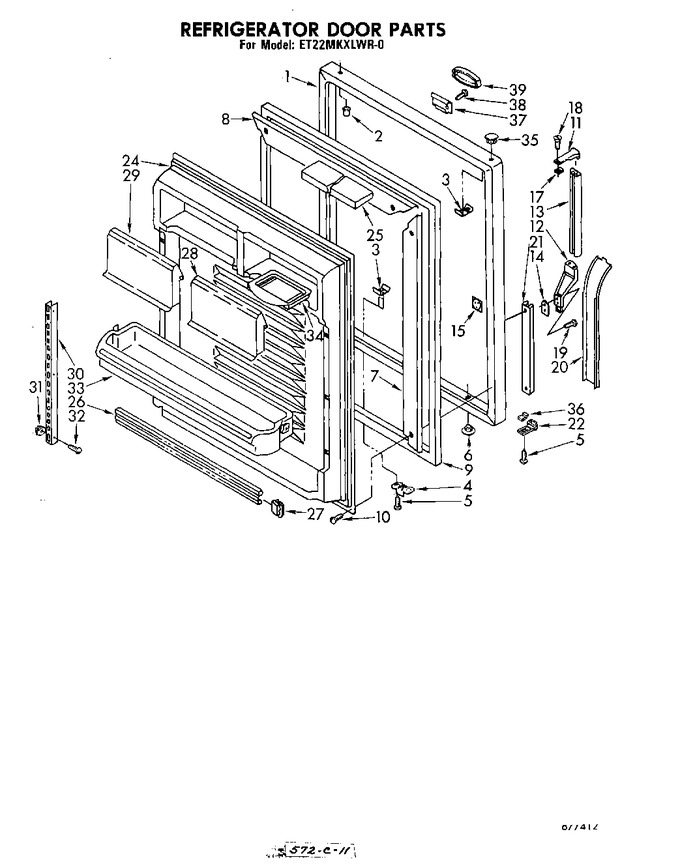

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944179 | Refrigerator Door Panel (almond) |
|
- | |||||
| 1 | 944175 | Refrigerator Door Panel (white) |
|
- | |||||
| 1 | 944176 | Refrigerator Door Panel (coffee) |
|
- | |||||
| 1 | 944177 | Refrigerator Door Panel (golden Harvest) |
|
- | |||||
| 1 | 944178 | Refrigerator Door Panel (avocado) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 3 | 943185 | Tap Plate |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | 488930 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | 534927 | Hole Plug |
|
- | |||||
| 7 | 981032 | Retainer, Gasket Side |
|
- | |||||
| 8 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 9 | 943055 | Door, Gasket Magnetic |
|
- | |||||
| 10 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 11 | 944157 | Handle, End Cap |
|
- | |||||
| 12 | 935103 | Handle, Center Cap |
|
- | |||||
| 13 | 944158 | Handle, Center (white & Coffee) |
|
- | |||||
| 13 | 943068 | Handle Center (almond) |
|
- | |||||
| 13 | 935083 | Handle, Center (avocado) |
|
- | |||||
| 13 | 935084 | Handle, Center (golden Harvest) |
|
- | |||||
| 14 | 935075 | Shim, Center Handle |
|
- | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 17 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 18 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 18 | 488923 | Screw (repair) |
|
- | |||||
| 19 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 20 | 935882 | Insert, Handle |
|
- | |||||
| 21 | 935872 | Retainer, Insert |
|
- | |||||
| 22 | 944166 | End Cap |
|
- | |||||
| 24 | 943136 | Interior, Door Panel |
|
- | |||||
| 25 | 849802 | Door Dike |
|
- | |||||
| 26 | 935918 | Trim, Door Shelf |
|
- | |||||
| 27 | 943138 | Retainer Door Trim |
|
- | |||||
| 28 | 935208 | Door, Butter |
|
- | |||||
| 29 | 935209 | Door, Utility |
|
- | |||||
| 30 | 839430 | Shelf Ladder, Door |
|
- | |||||
| 31 | 537095 | Expansion Clip |
|
- | |||||
| 32 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 33 | 943137 | Cantilever, Door Shelf |
|
- | |||||
| 34 | 520747 | Tray, Butter |
|
- | |||||
| 35 | 989894 | Hole Plug (avocado) |
|
- | |||||
| 35 | 989196 | Hole Plug (almond) |
|
- | |||||
| 35 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 35 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 35 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 36 | 944167 | Shim, End Cap |
|
- | |||||
| 37 | 843213 | Clip, Medallion |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 39 | 989904 | Medallion (almond) |
|
- | |||||
| 39 | 848382 | Medallion (white) |
|
- | |||||
| 39 | 989901 | Medallion (coffee) |
|
- | |||||
| 39 | 989902 | Medallion (avocado) |
|
- | |||||
| 39 | 989903 | Medallion (golden Harvest) |
|
- |
