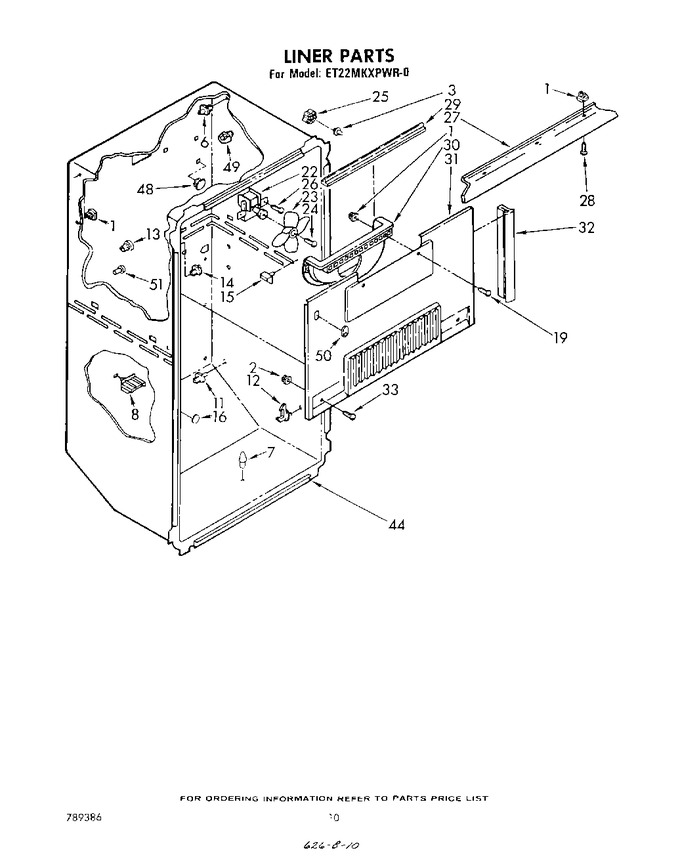

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	848445		Grommet		Appelez-nous	-
3	845722		Screw, Grommet		Appelez-nous	-
6	526383		Stud		Appelez-nous	-
7	836409		Grommet, Crisper Cover		Appelez-nous	-
8	836412		Crisper Cover, Support Rear		Appelez-nous	-
11	536475		Shelf, Stud				$ 7.28
12	836423		Shelf, Stud		Appelez-nous	-
13	538449		Screw Grommet		Appelez-nous	-
14	509108		Stud		Appelez-nous	-
15	836374		Retainer, Stud		Appelez-nous	-
16	519890		Hole, Plug		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
22	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 79.05
23	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
24	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
25	531933		Grommet				$ 5.70
26	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 8.52
27	982582		Baffle, Liner Top		Appelez-nous	-
28	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
29	935068		Gasket, Sealing		Appelez-nous	-
30	935067		Scroll, Fan		Appelez-nous	-
31	937710		Cover, Evaporator		Appelez-nous	-
32	991074		Gasket, Evaporator Cover		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
44	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
48	659598		Hole, Plug		Appelez-nous	-
49	523263		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
50	659776		Hole Plug, Evaporator		Appelez-nous	-
51	850738		Receptacle Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
