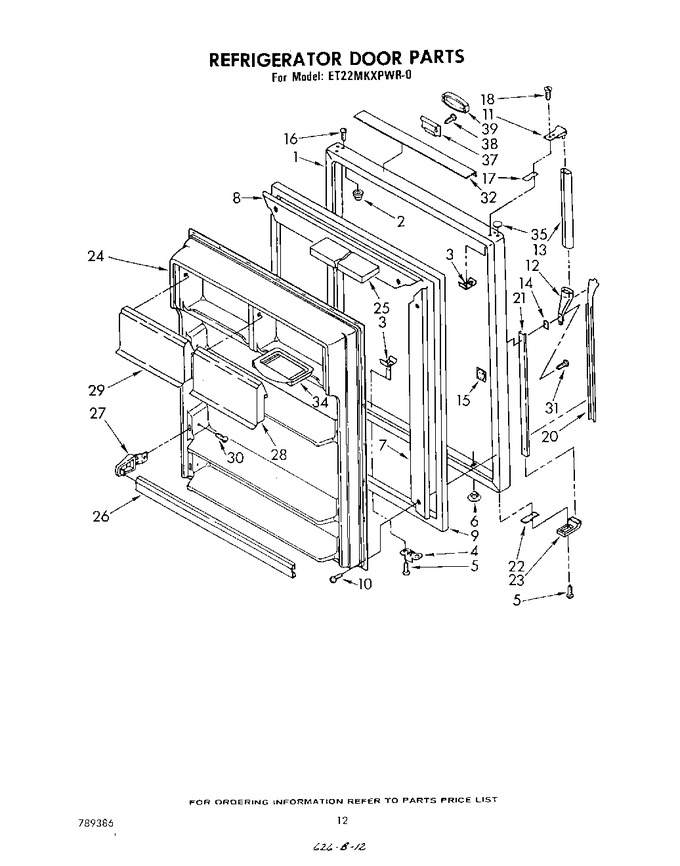

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101318		Refrigerator Door Panel (toast)		Appelez-nous	-
1	944175		Refrigerator Door Panel (white)		Appelez-nous	-
1	944177		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
1	944179		Refrigerator Door Panel (almond)		Appelez-nous	-
1	1101319		Refrigerator Door Panel (platinum)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
5	488930		Screw (repair)		Appelez-nous	-
6	534927		Hole Plug		Appelez-nous	-
7	981032		Retainer, Gasket Side		Appelez-nous	-
8	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
9	986704		Door, Gasket Magnetic		Appelez-nous	-
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	944157		Handle, End Cap		Appelez-nous	-
12	935103		Handle, Center Cap		Appelez-nous	-
13	1106054		Handle, Center		Appelez-nous	-
14	935075		Shim, Center Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
16	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
16	488930		Screw (repair)		Appelez-nous	-
17	943188		Spacer, Handle Door				$ 7.80
18	488923		Screw (repair)		Appelez-nous	-
18	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
20	1106055		Insert, Handle		Appelez-nous	-
21	935872		Retainer, Insert		Appelez-nous	-
22	1105805		Shim, Endcap		Appelez-nous	-
23	1105804		Endcap, Retainer		Appelez-nous	-
24	482557		Interior, Door Panel		Appelez-nous	-
25	849802		Door Dike		Appelez-nous	-
26	1108760		Trim, Door Shelf		Appelez-nous	-
27	940652		Retainer, Door Trim		Appelez-nous	-
28	1106052		Compartment Door, Butter		Appelez-nous	-
29	1108731		Door, Utility		Appelez-nous	-
30	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
31	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
32	1106148		Trim, Door Top		Appelez-nous	-
34	520747		Tray, Butter		Appelez-nous	-
35	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
35	989196		Hole Plug (almond)		Appelez-nous	-
35	1100188		Hole Plug (toast)		Appelez-nous	-
35	1100189		Hole Plug (platinum)		Appelez-nous	-
35	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
37	843213		Clip, Medallion		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
39	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
39	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
39	799908		Silicone (spray)		Appelez-nous	-
39	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
39	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
39	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
39	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
39	848382		Medallion (white)		Appelez-nous	-
39	989903		Medallion (golden Harvest)		Appelez-nous	-
39	989904		Medallion (almond)		Appelez-nous	-
39	1100194		Medallion (toast)		Appelez-nous	-
39	1100195		Medallion (platinum)		Appelez-nous	-
39	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
39	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
39	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
39	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
39	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
39	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
39	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
39	833938		Kit, Terminal Connector				$ 8.47
39	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
39	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
39	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
39	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
39	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
39	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
39	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
39	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
39	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
39	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
39	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
39	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	677971		Ice Maker		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	677967		Dishwasher		Appelez-nous	-
	677821		Compactor				$ 35.01
	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT789386		Parts List		Appelez-nous	-
	LIT1101059		Service & Wiring Sheet		Appelez-nous	-
	LIT1106062		Care & Use Guide		Appelez-nous	-
	LIT1106064		Energy Label		Appelez-nous	-
