01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Icemaker


08 - Freezer Door, Lit/optional

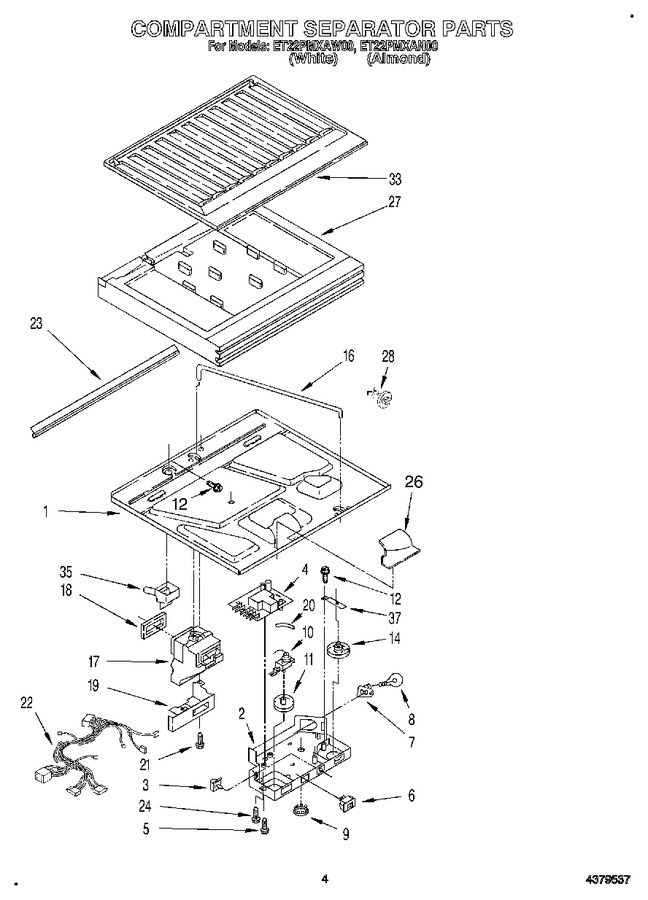

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172820		Bottom, Compartment Separator		Appelez-nous	-
2	2163558		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
4	4388931		Adaptive Defrost Control   (Replaces: 2169266)			Immediately	$ 243.98
5	WP487353		Screw   (Replaces: 488693)				$ 7.95
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 2162085)			Immediately	$ 115.67
8	W11679940		Bulb, Light (2)   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat   (Replaces: 2162425)				$ 219.95
11	1114315		Knob, Thermostat		Appelez-nous	-
12	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
14	1114314		Knob, Air Control		Appelez-nous	-
16	1105460		Rod, Connecting		Appelez-nous	-
17	2157253		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	WP2196003		Thermostat, Tube Barrier   (Replaces: 1106693)				$ 8.35
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	2159536		Wiring Assembly, Control Box		Appelez-nous	-
23	2159684		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw   (Replaces: 489048)				$ 8.78
26	1108196		Insulation, Filler		Appelez-nous	-
27	2172896		Insulation, Compartment Separator		Appelez-nous	-
28	2172812		Clip, Thermostat Tube Retention		Appelez-nous	-
33	2151663		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
