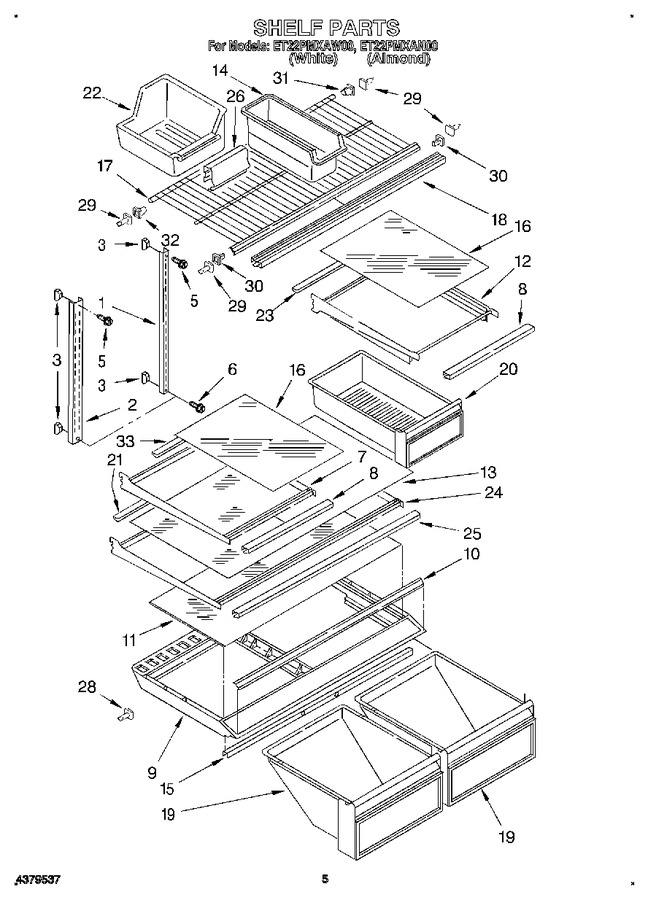

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
5	489345		Screw,		Appelez-nous	-
6	WP488163		Screw,   (Replaces: 488163)				$ 7.92
7	1110739		Shelf, Cantilever		Appelez-nous	-
8	1110742		Trim, Shelf		Appelez-nous	-
9	2148126		Crisper Cover		Appelez-nous	-
10	2172709		Trim, Crisper Cover		Appelez-nous	-
11	1106929		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	1114434		Glass Shelf		Appelez-nous	-
14	WP982704		Container (haze)   (Replaces: 2148079)				$ 32.55
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	1114474		Glass, Shelf		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	1106618		Trim, Shelf Front		Appelez-nous	-
19	2148160		Pan, Crisper		Appelez-nous	-
20	2148934		Pan, Meat		Appelez-nous	-
21	1114435		Reflector, Shelf		Appelez-nous	-
22	653504		Ice Cube Pan		Appelez-nous	-
23	1110744		Retainer, Glass		Appelez-nous	-
24	1116350		Shelf, Full Cantilever		Appelez-nous	-
25	1114436		Trim, Shelf		Appelez-nous	-
26	654218		Trim, Ice Cube Pan		Appelez-nous	-
28	1106612		Shelf Stud				$ 7.56
29	946355		Stud, Support		Appelez-nous	-
30	946356		Stud, Front (2)		Appelez-nous	-
31	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
32	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
33	1110743		Reflector, Shelf		Appelez-nous	-
