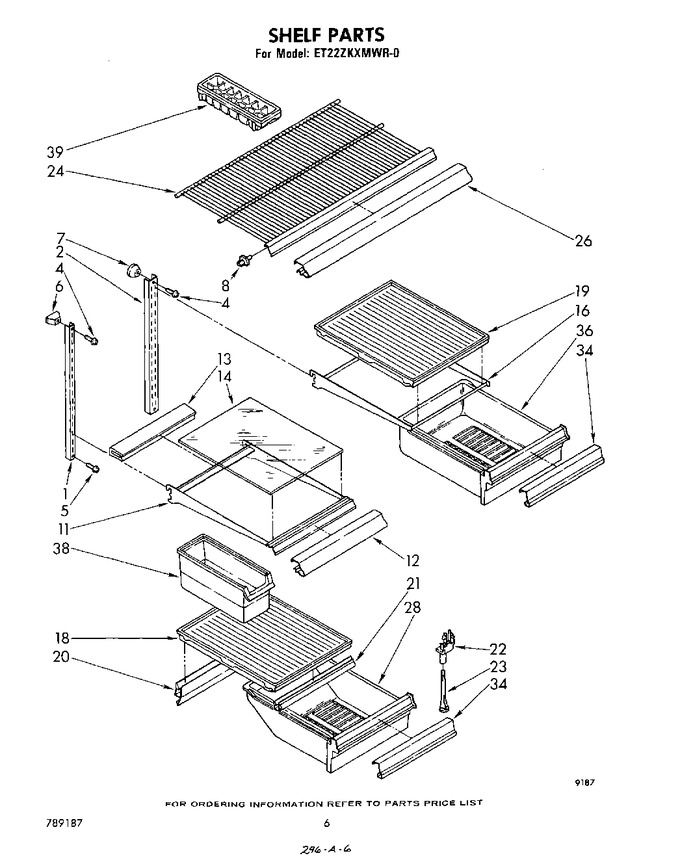

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	934267		Shelf, Ladder (2)		Appelez-nous	-
2	936230		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 31.35
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
11	936381		Shelf, Cantilever		Appelez-nous	-
12	845610		Trim, Shelf		Appelez-nous	-
13	1101581		Reflector, Cantilever		Appelez-nous	-
14	1101580		Glass, Cantilever		Appelez-nous	-
16	942590		Cantilever, Pan Shelf		Appelez-nous	-
18	1101577		Pan Slide & Cover		Appelez-nous	-
19	1101578		Pan Slide & Cover (meat)		Appelez-nous	-
20	982158		Crisper Gasket, Rear		Appelez-nous	-
21	983114		Crisper Gasket, Front		Appelez-nous	-
22	848562		Support, Crisper Cover				$ 24.30
23	836410		Post, Cripser Cover				$ 5.84
24	935245		Shelf, Freezer		Appelez-nous	-
26	981454		Trim, Shelf Front		Appelez-nous	-
28	1100327		Crisper Pan (for Platinum Model Only)		Appelez-nous	-
28	935201		Pan, Crisper		Appelez-nous	-
34	986316		Overlay, Front Cover		Appelez-nous	-
36	1100329		Pan, Meat (for Platinum Model Only)		Appelez-nous	-
36	935203		Meat Pan		Appelez-nous	-
38	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
39	789187		List, Parts		Appelez-nous	-
39	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
39	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
39	799832		Kit, Porcelain Repair		Appelez-nous	-
39	1101059		Tech Sheet		Appelez-nous	-
39	1101599		Consumer Buy Guide		Appelez-nous	-
39	1101600		Energy Guide		Appelez-nous	-
39	1101598		Guide, Use & Care		Appelez-nous	-
39	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
39	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
39	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
39	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
39	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
39	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
39	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
39	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
39	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
39	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
39	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
39	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
39	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
39	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
39	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
39	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
39	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
39	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
39	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
39	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
39	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
39	212643		Ealer, Gum (4 Feet)			Immediately	$ 96.42
39	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
39	978241		Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)		Appelez-nous	-
39	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
39	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
39	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
39	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White				$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
