02 - Cabinet
03 - Breaker And Partition
04 - Shelf, Lit/optional
05 - Unit
06 - Liner
07 - Freezer Door
08 - Refrigerator Door
SELECT A DIAGRAM
New Model Search:

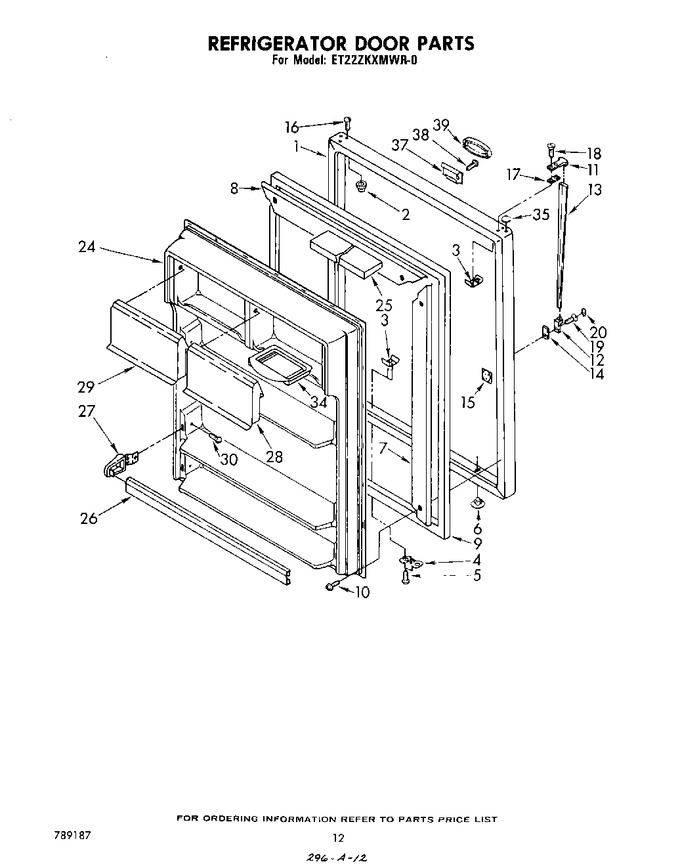

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1101586 | Refrigerator Door Panel (coffee) |
|
- | |||||
| 1 | 1101591 | Refrigerator Door Panel (platinum) |
|
- | |||||
| 1 | 1101590 | Refrigerator Door Panel (toast) |
|
- | |||||
| 1 | 1101589 | Refrigerator Door Panel (almond) |
|
- | |||||
| 1 | 1101588 | Refrigerator Door Panel (new Avocado) |
|
- | |||||
| 1 | 1101587 | Refrigerator Door Panel (golden Harvest) |
|
- | |||||
| 1 | 1101585 | Refrigerator Door Panel (white) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 3 | 943185 | Tap Plate |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | 488930 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | 534927 | Hole Plug |
|
- | |||||
| 7 | 981032 | Retainer, Gasket Side |
|
- | |||||
| 8 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 9 | 943055 | Door, Gasket Magnetic |
|
- | |||||
| 9 | 986704 | Door, Gasket Magnetic (for Platinum Model Only) |
|
- | |||||
| 10 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 11 | 943182 | Handle, End Cap |
|
- | |||||
| 12 | WP2183139 | Handle, Center Cap (Replaces: 983542) |
|
Immediately | $ 51.98 | ||||
| 13 | 982946 | Handle, Center |
|
- | |||||
| 14 | 992872 | Shim, Center Handle |
|
- | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | 488930 | Screw (repair) |
|
- | |||||
| 16 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 17 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 18 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 18 | 488923 | Screw (repair) |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 20 | WP1101634 | Screw Cover, Handle (Replaces: 981182) |
|
$ 9.68 | |||||
| 24 | 482557 | Interior, Door Panel (for Platinum Model Only) |
|
- | |||||
| 24 | 1101592 | Interior, Door Panel |
|
- | |||||
| 25 | 849802 | Door Dike |
|
- | |||||
| 26 | 1101594 | Trim, Door Shelf |
|
- | |||||
| 27 | 943150 | Retainer, Door Trim |
|
- | |||||
| 27 | 940652 | Retainer, Door Trim (for Platinum Model Only) |
|
- | |||||
| 28 | 935228 | Door, Butter |
|
- | |||||
| 29 | 935143 | Door, Utility |
|
- | |||||
| 30 | WP488729 | Screw, 8 X 1/2 (Replaces: 488783) |
|
Immediately | $ 8.28 | ||||
| 34 | 520747 | Tray, Butter |
|
- | |||||
| 35 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 35 | 989196 | Hole Plug (almond) |
|
- | |||||
| 35 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 35 | 989894 | Hole Plug (new Avocado) |
|
- | |||||
| 35 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 35 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 35 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 37 | 843213 | Clip, Medallion |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 39 | 1100195 | Medallion (platinum) |
|
- | |||||
| 39 | 848382 | Medallion (white) |
|
- | |||||
| 39 | 989901 | Medallion (coffee) |
|
- | |||||
| 39 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 39 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 39 | 989904 | Medallion (almond) |
|
- | |||||
| 39 | 1100194 | Medallion (toast) |
|
- |
