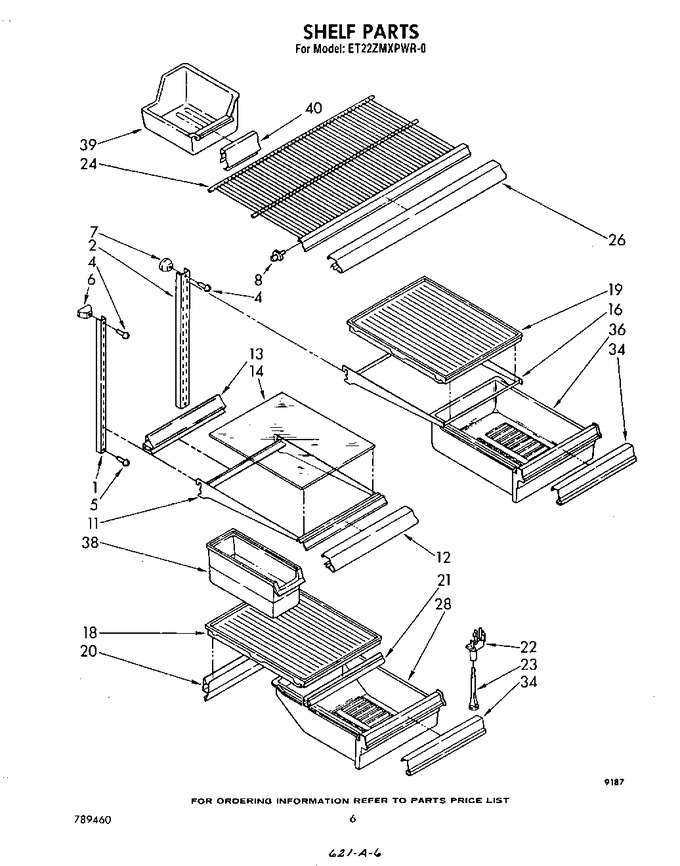

SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Shelf


05 - Unit


06 - Liner


07 - Freezer Door


08 - Refrigerator Door


09 - Ice Maker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106032		Shelf, Ladder (2)		Appelez-nous	-
2	1106033		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 31.35
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
11	1106046		Shelf, Cantilever		Appelez-nous	-
12	845610		Trim, Shelf		Appelez-nous	-
13	985083		Reflector, Cantilever		Appelez-nous	-
14	1106047		Glass, Cantilever		Appelez-nous	-
16	942590		Cantilever, Pan Shelf		Appelez-nous	-
18	1106039		Pan Slide & Cover		Appelez-nous	-
19	1106040		Pan Slide & Cover (meat)		Appelez-nous	-
20	935860		Crisper Gasket, Rear		Appelez-nous	-
21	983114		Crisper Gasket, Front		Appelez-nous	-
22	848562		Support, Crisper Cover				$ 24.30
23	836410		Post, Cripser Cover				$ 5.84
24	935245		Shelf, Freezer		Appelez-nous	-
26	981454		Trim, Shelf Front		Appelez-nous	-
28	1106042		Pan, Crisper		Appelez-nous	-
34	986316		Overlay, Front Cover		Appelez-nous	-
36	1106044		Meat, Pan		Appelez-nous	-
38	WP982704		Container, Utility   (Replaces: 1108734)				$ 32.55
39	W11625904		Pan, Ice Cube   (Replaces: 940094)				$ 67.83
40	837142		Trim, Ice Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
