SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Shelf


05 - Unit


06 - Liner


07 - Freezer Door

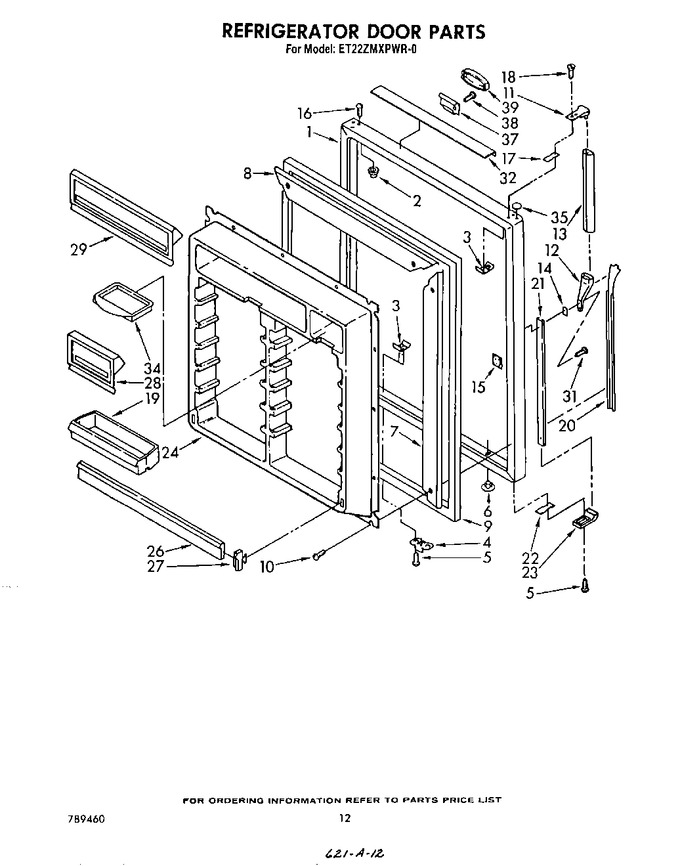

08 - Refrigerator Door


09 - Ice Maker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101318		Refrigerator Door Panel (toast)		Appelez-nous	-
1	944179		Refrigerator Door Panel (almond)		Appelez-nous	-
1	944177		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
1	1101319		Refrigerator Door Panel (platinum)		Appelez-nous	-
1	944175		Refrigerator Door Panel (white)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
5	488930		Screw (repair)		Appelez-nous	-
6	534927		Hole Plug		Appelez-nous	-
7	981032		Retainer, Gasket Side		Appelez-nous	-
8	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
9	986704		Door, Gasket Magnetic		Appelez-nous	-
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	944157		Handle, End Cap		Appelez-nous	-
12	935103		Handle, Center Cap		Appelez-nous	-
13	1106054		Handle, Center		Appelez-nous	-
14	935075		Shim, Center Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
16	488930		Screw (repair)		Appelez-nous	-
16	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
17	943188		Spacer, Handle Door				$ 7.80
18	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
18	488923		Screw (repair)		Appelez-nous	-
19	1110161		Cantilever, Door Shelf (4)		Appelez-nous	-
20	1106055		Insert, Handle		Appelez-nous	-
21	935872		Retainer, Insert		Appelez-nous	-
22	1105805		Shim, Endcap		Appelez-nous	-
23	1105804		Endcap, Retainer		Appelez-nous	-
24	1104234		Interior, Door Panel		Appelez-nous	-
26	1110158		Trim, Door Shelf		Appelez-nous	-
27	844723		Retainer, Door Trim		Appelez-nous	-
28	1110159		Door, Butter		Appelez-nous	-
29	1110160		Door, Utility		Appelez-nous	-
31	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
32	1106148		Trim, Door Top		Appelez-nous	-
34	520747		Tray, Butter		Appelez-nous	-
35	1100189		Hole Plug (platinum)		Appelez-nous	-
35	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
35	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
35	989196		Hole Plug (almond)		Appelez-nous	-
35	1100188		Hole Plug (toast)		Appelez-nous	-
37	843213		Clip, Medallion		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
39	848382		Medallion (white)		Appelez-nous	-
39	1100194		Medallion (toast)		Appelez-nous	-
39	1100195		Medallion (platinum)		Appelez-nous	-
39	989903		Medallion (golden Harvest)		Appelez-nous	-
39	989904		Medallion (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
