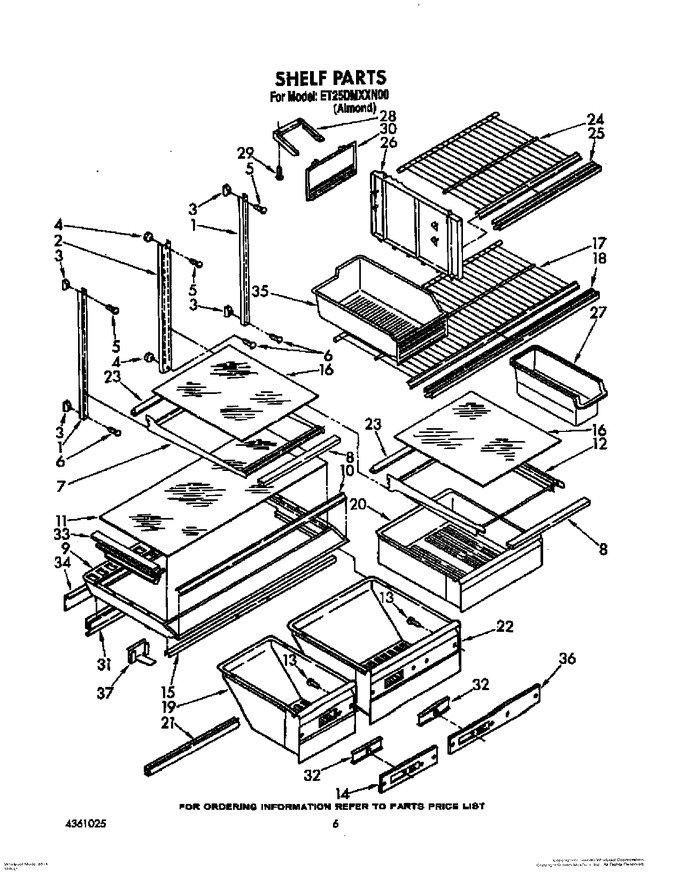

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1114564		Shelf, Cantilever (4)		Appelez-nous	-
8	1116662		Trim, Shelf		Appelez-nous	-
9	1114567		Crisper Cover		Appelez-nous	-
10	1116668		Trim, Crisper Cover		Appelez-nous	-
11	1116667		Glass, Crisper Cover		Appelez-nous	-
12	2147577		Pan Shelf, Cantilever		Appelez-nous	-
13	489226		Screw (6)		Appelez-nous	-
14	1116676		Front, Crisper Pan		Appelez-nous	-
15	1114568		Support, Cover		Appelez-nous	-
16	1116661		Shelf, Glass		Appelez-nous	-
17	1114570		Shelf, Freezer		Appelez-nous	-
18	2148414		Trim, Shelf Front		Appelez-nous	-
19	2148903		Pan, Crisper		Appelez-nous	-
20	2148904		Pan, Meat		Appelez-nous	-
21	1116665		Crisper, Gasket Front		Appelez-nous	-
22	2148901		Pan, Crisper		Appelez-nous	-
23	1116663		Reflector, Shelf		Appelez-nous	-
24	1121154		Shelf, Freezer (top)		Appelez-nous	-
25	2148415		Trim, Shelf		Appelez-nous	-
26	1115194		Divider		Appelez-nous	-
27	WP982704		Container   (Replaces: 2148079)				$ 32.55
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw, 8 X 1/2 (2)   (Replaces: 489242)				$ 8.18
30	2148731		Door, Ice Compartment		Appelez-nous	-
31	1116666		Crisper, Gasket Rear		Appelez-nous	-
32	1116718		Pan, Crisper		Appelez-nous	-
33	1118092		Crisper Track, Center		Appelez-nous	-
34	2147047		Support Bar		Appelez-nous	-
35	W11625904		Ice Cube, Pan   (Replaces: 2148797)				$ 67.83
36	1123125		Front, Crisper Pan		Appelez-nous	-
37	2149078		Clip (3)		Appelez-nous	-
