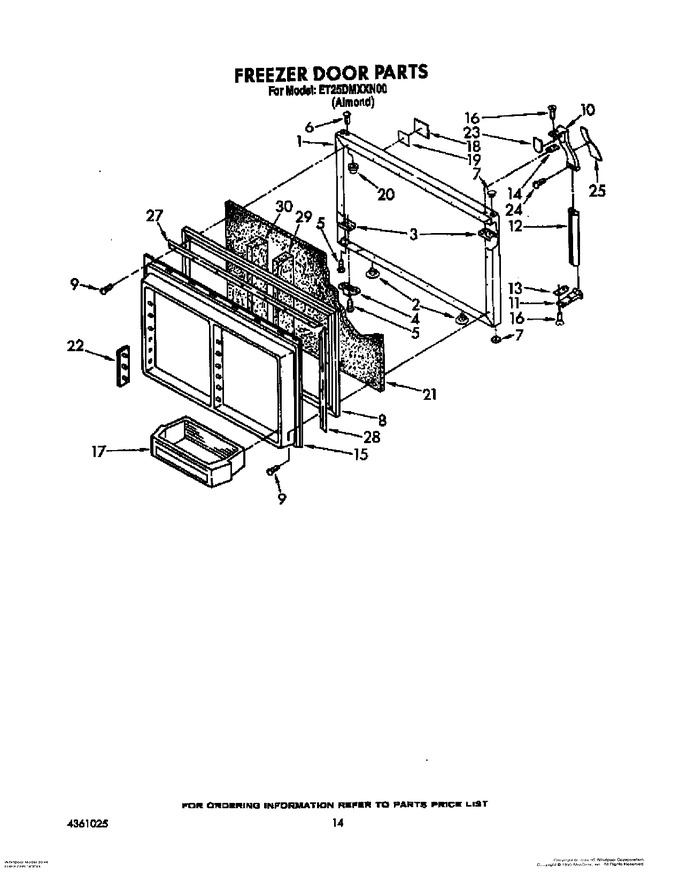

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114588		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1123226		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	944163		Handle End, Top				$ 53.54
11	944157		Handle End		Appelez-nous	-
12	1118084		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1123276		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	1123038		Shelf Bin (4)		Appelez-nous	-
18	1111555		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	1116986		Pin Plate (8)				$ 12.10
23	935074		Shim, Endcap (top)		Appelez-nous	-
24	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
25	1114390		Insert, Handle		Appelez-nous	-
27	1121119		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
28	1121120		Gasket Retainer, Side (2)		Appelez-nous	-
29	1118008		Door Dike, Center		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
30	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
30	1118007		Door Dike, Side (2)		Appelez-nous	-
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
30	833938		Kit, Terminal Connector				$ 8.47
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT2154430		Service & Wiring Sheet		Appelez-nous	-
	LIT2148912		Energy Label		Appelez-nous	-
	LIT1121249		Use & Care Guide		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	1117510		Torx Key				$ 5.84
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT4361025		Parts List		Appelez-nous	-
