SELECT A DIAGRAM

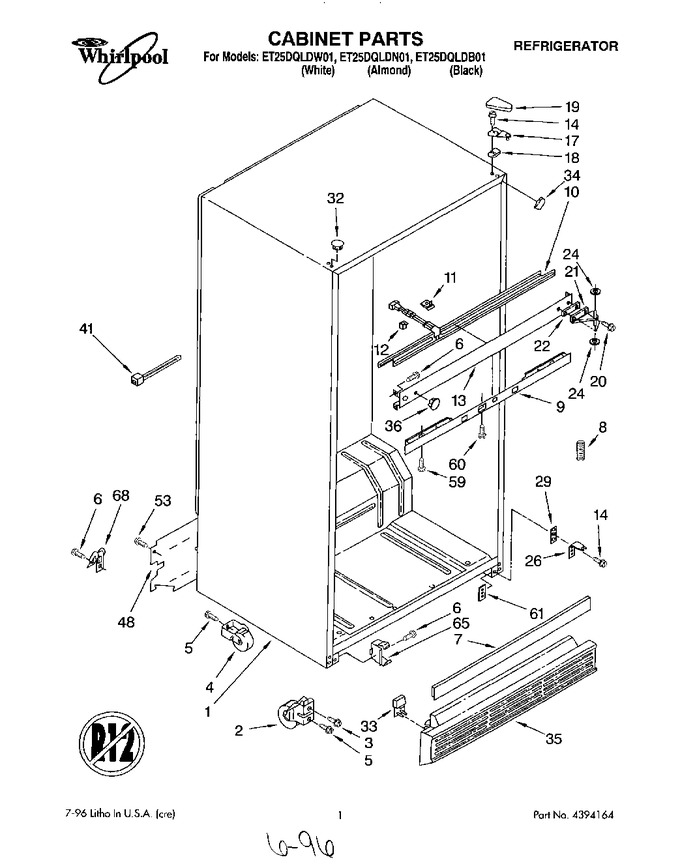

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Freezer Door


05 - Shelf


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Roller, Front		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 11.88
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP489478		Screw   (Replaces: 489242)				$ 7.75
7	2174745		Deck Rail Cover		Appelez-nous	-
8	983659		Spring		Appelez-nous	-
9	2148635		Control, Front Cover		Appelez-nous	-
10	2154069		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Rail (4)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	2173821		Center Rail (black)		Appelez-nous	-
13	2174743		Center Rail (white)		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 7.86
17	WP2189412		Hinge, Top   (Replaces: 2157593)				$ 114.50
18	1123515		Shim, Hinge Top				$ 6.58
19	2160404		Hinge Cover (almond)		Appelez-nous	-
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 19.23
19	WP2213363		Hinge Cover (black)   (Replaces: 2160406)			Immediately	$ 18.21
20	WP999367		Screw   (Replaces: 489105)				$ 7.86
21	2151453		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
26	2172813		Hinge Butt, Bottom		Appelez-nous	-
29	2172744		Shim, Bottom		Appelez-nous	-
32	WP2183998		Hole Plug (black)   (Replaces: 2160802)				$ 18.10
32	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 21.78
32	2151653		Hole Plug (almond)		Appelez-nous	-
33	1118078		Corner Filler, Grille (black)		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
34	2162679		Filler, Wrap Corner (black)		Appelez-nous	-
34	1118059		Filler, Wrap Corner (almond)		Appelez-nous	-
34	1118058		Filler, Wrap Corner (white)		Appelez-nous	-
35	2169060		Grille (white)		Appelez-nous	-
35	2169061		Grille (almond)		Appelez-nous	-
35	2169062		Grille (black)		Appelez-nous	-
36	1129062		Hole Plug		Appelez-nous	-
41	WPW10339879		Strap, Mounting   (Replaces: 2155774)				$ 7.90
48	2183134		Cover, Unit		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
59	WP488163		Screw,   (Replaces: 488725)				$ 7.54
60	WP489174		Screw   (Replaces: 489174)				$ 6.95
61	2157315		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 2155013)			Immediately	$ 7.72
68	549193		Clamp				$ 13.39

    View Diagram in Separate Window       Print Part List
