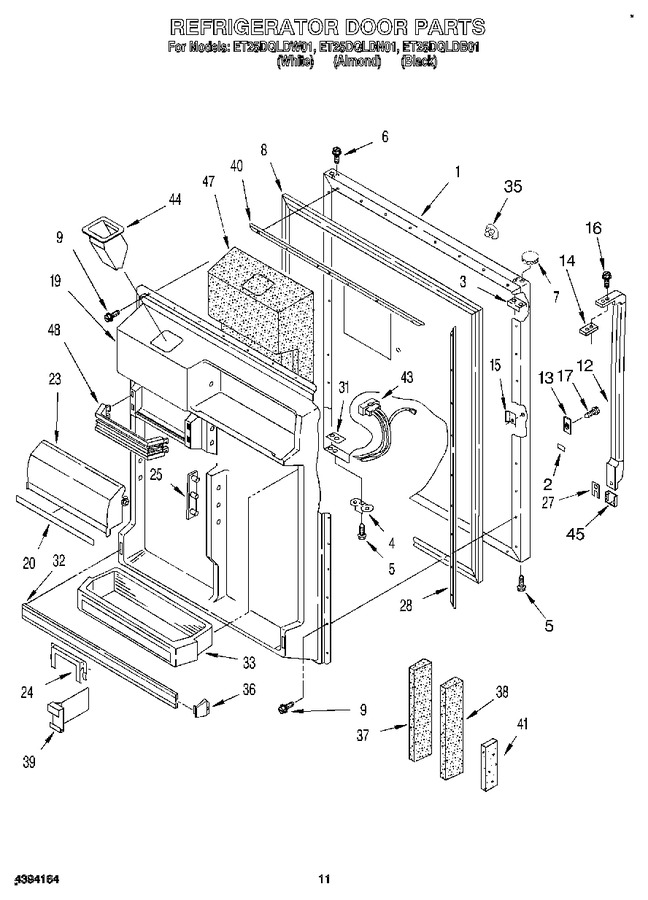

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2169036 | Refrigerator Door Panel (includes Insulation) (white) |
|
- | |||||
| 1 | 2169038 | Refrigerator Door Panel (includes Insulation) (black) |
|
- | |||||
| 1 | 2169037 | Refrigerator Door Panel (includes Insulation) (almond) |
|
- | |||||
| 2 | 2179398 | Shim, Handle |
|
- | |||||
| 3 | 943185 | Plate, Tap (2) |
|
- | |||||
| 4 | 2155332 | Bracket, Door Stop (chrome) |
|
- | |||||
| 4 | 2155334 | Bracket, Door Stop (black) |
|
- | |||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 6 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2160808) |
|
$ 23.06 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 1121176 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 8 | 2170602 | Door Gasket, Magnetic (black Model) |
|
- | |||||
| 9 | WP489442 | Screw (32) (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 12 | 2179312 | Handle (almond) |
|
- | |||||
| 12 | 2179313 | Handle (black) |
|
- | |||||
| 12 | 2179311 | Handle (white) |
|
- | |||||
| 13 | 2179319 | Shim, Handle |
|
- | |||||
| 14 | 2151813 | Shim, Handle |
|
- | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 2151669) |
|
$ 7.50 | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.49 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 19 | 2160667 | Interior Door Panel |
|
- | |||||
| 20 | 2162896 | Trim, Door Compartment |
|
- | |||||
| 23 | 2148289 | Compartment Door |
|
- | |||||
| 24 | 2173643 | Retainer, Bottle |
|
- | |||||
| 25 | 1116986 | Pin Plate (6) |
|
$ 12.10 | |||||
| 27 | 2183124 | Shim, Handle |
|
- | |||||
| 28 | 1123245 | Retainer, Gasket |
|
- | |||||
| 31 | 2155335 | Tap, Plate |
|
- | |||||
| 32 | 2171401 | Trim, Door Shelf |
|
- | |||||
| 33 | 2179602 | Bin, Door Shelf (3) |
|
- | |||||
| 35 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 35 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2160809) |
|
$ 7.25 | |||||
| 35 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.40 | ||||
| 36 | 4386917 | End Cap, Trim (2) (Replaces: 1105685) |
|
Immediately | $ 18.00 | ||||
| 37 | 1118008 | Door Dike, Center |
|
- | |||||
| 38 | 1118007 | Door Dike, Side (2) |
|
- | |||||
| 39 | 2171284 | Divider, Bin |
|
- | |||||
| 40 | 1121119 | Retainer, Gasket |
|
- | |||||
| 41 | 2168584 | Support, Pin Plate |
|
- | |||||
| 43 | 2169003 | Plug, Crossover |
|
- | |||||
| 44 | 2160684 | Ice Chute |
|
- | |||||
| 45 | 2174008 | Cover, Endcap (black) |
|
- | |||||
| 45 | 2174007 | Cover, End Cap (almond) |
|
- | |||||
| 45 | 2174006 | Cover, Endcap (white) |
|
- | |||||
| 47 | 2160683 | Insulation, Dispenser |
|
- | |||||
| 48 | 2177158 | Trim-door Shelf |
|
- |
