Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2172830 Bottom, Compartment Separator Appelez-nous -
2 2173920 Box, Control Appelez-nous -
3 WP2149705 Switch, Light   (Replaces: 2149705) In-Stock Immediately $ 40.40

4 WP2183400 Timer, Defrost (10 Hour)   (Replaces: 2162044) In-Stock Immediately $ 86.97

5 WP487353 Screw   (Replaces: 488693) Special Order $ 7.57

6 938049 Switch, Toggle Appelez-nous -
7 WPW10119935 Socket   (Replaces: 2155597) Special Order $ 101.10

8 W10887190 Bulb, Light   (Replaces: 2160708) In-Stock Immediately $ 18.31

9 940014 Hole Plug Special Order $ 18.33

10 1123394 Thermostat Assembly   (Replaces: 1105693) Special Order $ 209.48

11 2174826 Knob, Thermostat Appelez-nous -
12 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.72

13 2160638 Light, Bar Left Appelez-nous -
14 2174827 Knob, Air Control Appelez-nous -
15 2160639 Light, Bar Right Appelez-nous -
16 1118057 Rod, Connecting Appelez-nous -
17 2157252 Air Diffuser Assembly Appelez-nous -
18 2157255 Gasket, Air Diffuser Appelez-nous -
19 1108176 Cover, Air Diffuser Appelez-nous -
20 WP2196003 Thermostat, Tube Barrier   (Replaces: 1106693) Special Order $ 7.95

21 WP489478 Screw   (Replaces: 489242) Special Order $ 7.75

22 2160637 Wiring Assembly, Control Box Appelez-nous -
23 2159734 Gasket, Bottom Separator Appelez-nous -
24 WP250830 Screw   (Replaces: 489048) Special Order $ 7.95

25 2160616 Gasket, Ice Chute Appelez-nous -
26 1108196 Insulation, Filler Appelez-nous -
27 2160627 Insulation, Compartment Separator Appelez-nous -
28 2172812 Clip, Thermostat Tube Retention Appelez-nous -
29 2168582 Rubber Strip Appelez-nous -
30 1115189 Separator, Compartment (top) (front) Appelez-nous -
33 2168577 Separator, Compartment (rear) Appelez-nous -
35 937065 Cup, Drain Appelez-nous -
37 1105457 Bracket, Control Knob Appelez-nous -
38 2160634 Ice Chute, (seperator) Appelez-nous -
39 WP4387911 Switch-door   (Replaces: 851387) In-Stock Immediately $ 39.66

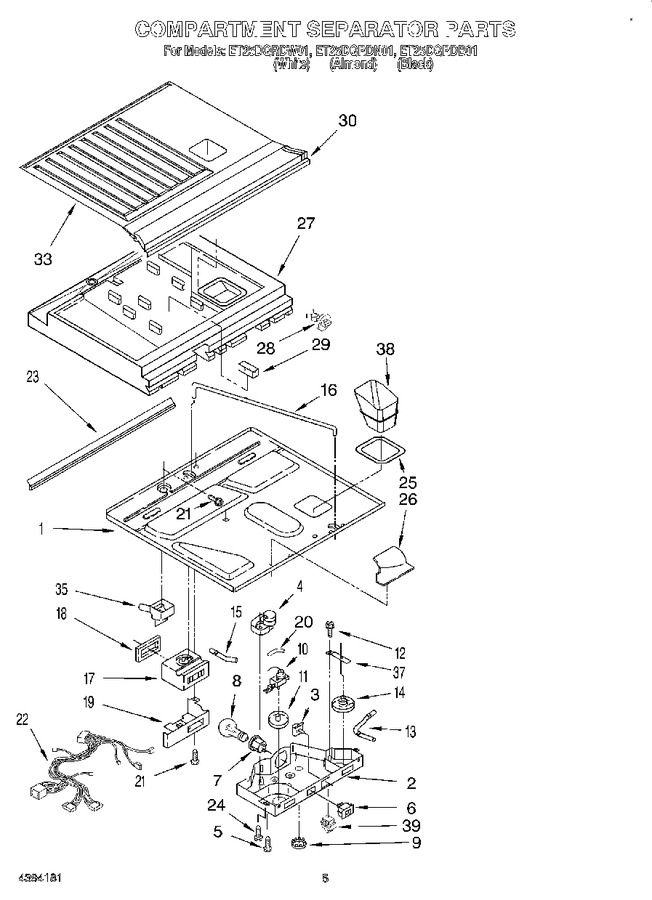

    View Diagram in Separate Window     Print Icon   Print Part List
