SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Freezer Door


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front


10 - Ice Maker

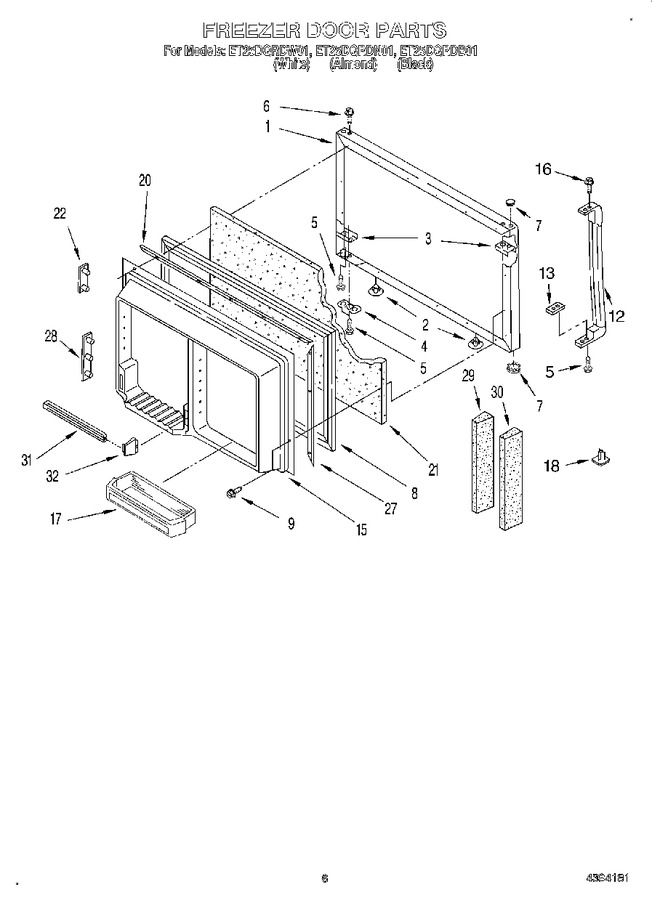

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159164		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2161856		Panel, Freezer Door (also Order Item 21) (black)		Appelez-nous	-
1	2159167		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	1110485		Hole Plug (2) (black)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw   (Replaces: 489028)				$ 7.94
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 23.06
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1121202		Door Gasket Magnetic (mist Beige)		Appelez-nous	-
8	2170603		Door Gasket Magnetic (black Model)		Appelez-nous	-
9	WP489442		Screw (26)   (Replaces: 489442)			Immediately	$ 10.94
12	2179309		Handle, Center (almond)		Appelez-nous	-
12	2179310		Handle, Center (black)		Appelez-nous	-
12	2179308		Handle, Center (white)		Appelez-nous	-
13	2151813		Shim, Handle		Appelez-nous	-
15	2171393		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.49
17	2179603		Bin, Shelf (3)		Appelez-nous	-
18	2174435		Hole Plug (black)		Appelez-nous	-
18	2174433		Hole Plug (white)		Appelez-nous	-
18	2174434		Hole Plug (almond)		Appelez-nous	-
20	1121119		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1118048		Pin Plate (4)		Appelez-nous	-
27	1121120		Retainer, Gasket		Appelez-nous	-
28	1116986		Pin Plate (2)				$ 12.10
29	1118008		Reinforcement, Mid Door		Appelez-nous	-
30	1118007		Reinforcement, Side Door		Appelez-nous	-
31	2171400		Trim, Door Shelf		Appelez-nous	-
32	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.00
