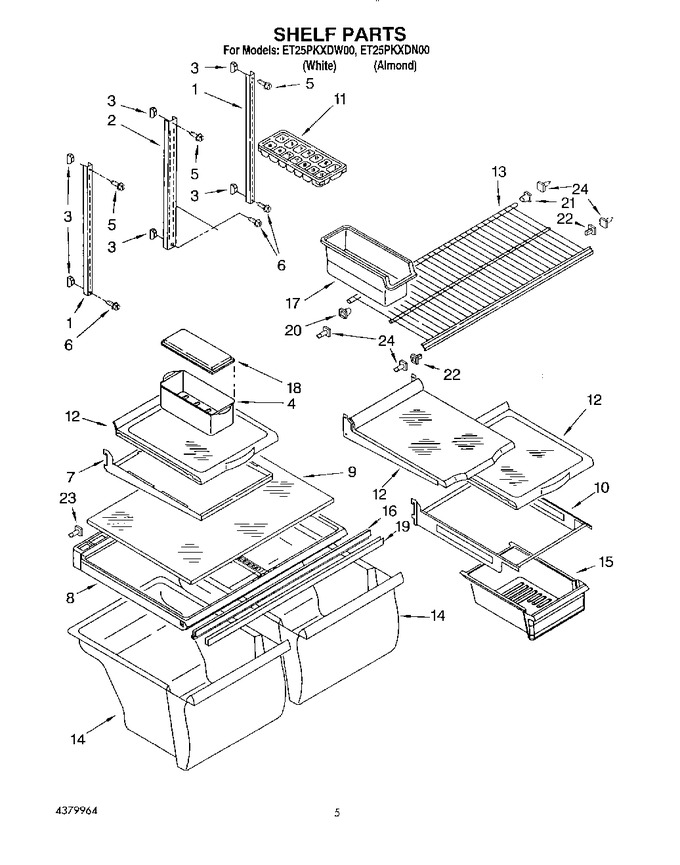

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489450)			Immediately	$ 8.55
7	2160307		Shelf, Cantilever		Appelez-nous	-
8	2174461		Crisper Cover		Appelez-nous	-
9	2179397		Glass, Crisper Cover		Appelez-nous	-
10	2179439		Shelf, Meat Pan		Appelez-nous	-
11	WP841180A		Tray, Ice   (Replaces: 841180)			Immediately	$ 47.84
12	2179435		Shelf Assembly- Spillguard		Appelez-nous	-
13	1125745		Shelf, Freezer		Appelez-nous	-
14	2179526		Pan, Crisper (2)		Appelez-nous	-
15	2179527		Pan, Meat		Appelez-nous	-
16	2179393		Crisper Gasket, Front		Appelez-nous	-
17	WP982704		Container   (Replaces: 1116917)				$ 32.55
18	2169935		Cover		Appelez-nous	-
19	2179449		Crisper Support		Appelez-nous	-
20	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
21	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
22	946356		Shelf Stud (2)		Appelez-nous	-
23	1106612		Shelf Stud (2)				$ 7.56
24	946355		Support Stud (4)		Appelez-nous	-
