01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional

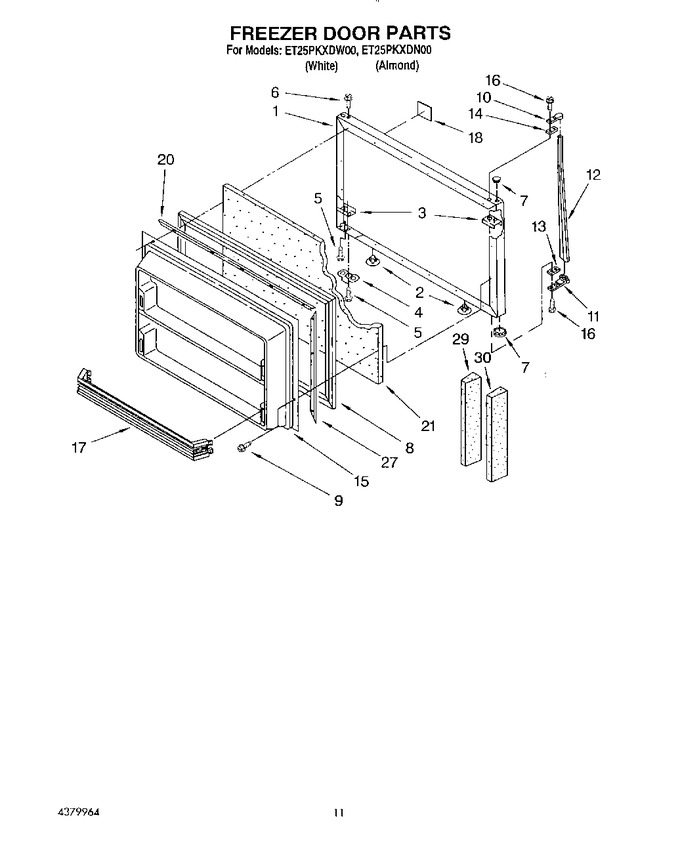

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159164		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2159167		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1121202		Door Gasket, Magnetic		Appelez-nous	-
9	WP489442		Screw (26)   (Replaces: 489442)			Immediately	$ 11.49
10	819342		Handle End, Top (white)   (Replaces: 9791776)			Immediately	$ 51.31
10	819342		Handle End, Top (almond)   (Replaces: 9791777)			Immediately	$ 51.31
11	819342		Handle End (white)   (Replaces: 9791771)			Immediately	$ 51.31
11	819342		Handle End (almond)   (Replaces: 9791772)			Immediately	$ 51.31
12	2162556		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2162555)			Immediately	$ 157.62
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1125739		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	2171399		Bin, Shelf (2)		Appelez-nous	-
18	2162781		Nameplate (white Model)		Appelez-nous	-
18	2162782		Nameplate (almond Model)		Appelez-nous	-
20	1121119		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
27	1121120		Retainer, Gasket		Appelez-nous	-
29	1118008		Reinforcement, Mid Door		Appelez-nous	-
30	1118007		Reinforcement, Side Door		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	LIT2182522		Energy Guide		Appelez-nous	-
	LIT2182537		Use & Care Guide		Appelez-nous	-
	LIT2176899		Service & Wiring Sheet		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref/frz		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	2172761		Door Reversal Instructions		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 155.00
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
