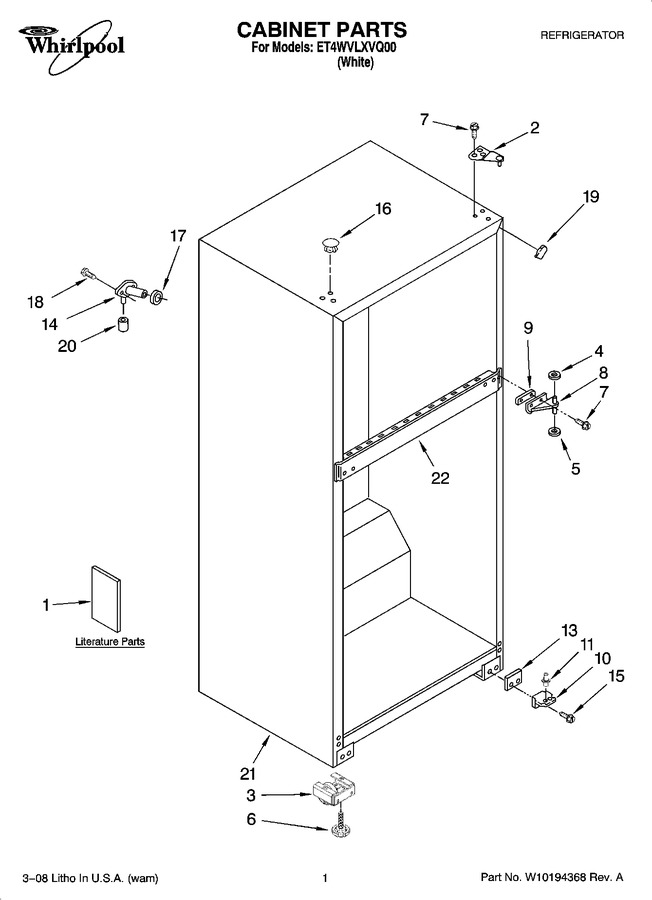

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 1 | 2265209 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10185745 | Energy Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller-front (includes Item 6) (Replaces: W10142530) |
|
Immediately | $ 112.48 | ||||
| 4 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 5 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 6 | WPW10133299 | Leveler Screw (Replaces: W10142551) |
|
$ 11.76 | |||||
| 7 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.91 | |||||
| 8 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 78.16 | |||||
| 9 | 2166043 | Shim, Hinge Center |
|
$ 66.44 | |||||
| 10 | WP2325482 | Hinge Butt Bottom (Replaces: 2325482) |
|
Immediately | $ 76.19 | ||||
| 11 | WP2325483 | Hinge-pin Bott. (Replaces: 2325483) |
|
Immediately | $ 7.19 | ||||
| 13 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.77 | ||||
| 14 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.99 | ||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 17 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 18 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.79 | ||||
| 19 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 7.70 | |||||
| 20 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.26 |
