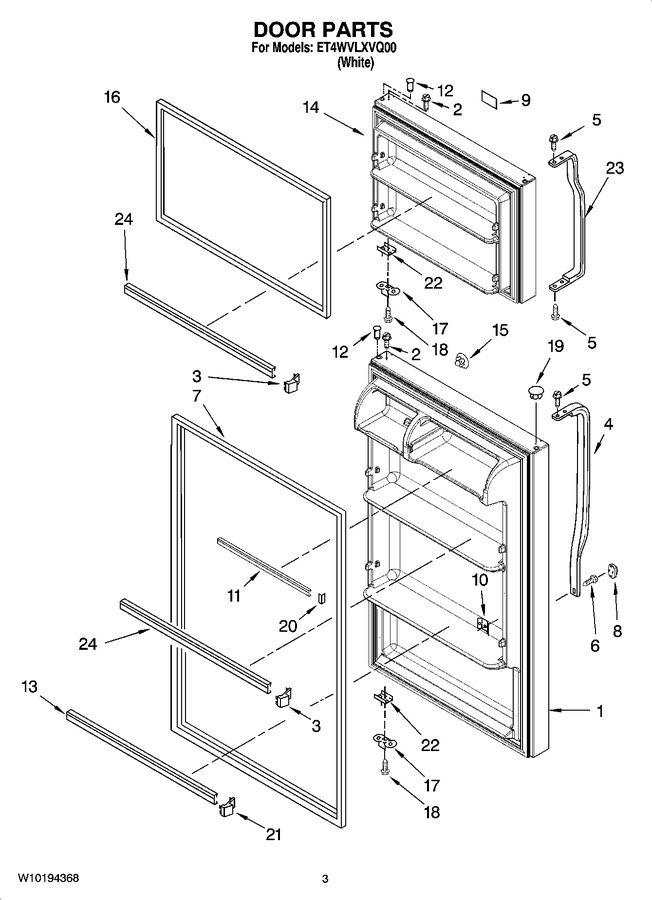

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316194W		Refrigerator Door (includes Illus. 7,10, 12 & 22)		Appelez-nous	-
2	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
3	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 13.25
4	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 130.11
5	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
6	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
7	WP2319265T		Door Gasket, Magnetic   (Replaces: W10190033)			Immediately	$ 184.89
8	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 8.14
9	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
10	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
11	W11129820		Trim, Door Shelf   (Replaces: 2266729)			Immediately	$ 127.34
12	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
13	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
14	2263275W		Freezer Door (includes Illus. 12,16 & 22)		Appelez-nous	-
15	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
16	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 169.53
17	2217944		Bracket, Door Stop				$ 26.55
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
19	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 8.19
20	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
21	WP2195916K		Trim, End Cap   (Replaces: 2195916)			Immediately	$ 13.18
22	2183198		Tap Plate		Appelez-nous	-
23	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 156.82
24	WP2266727		Trim, Door Shelf   (Replaces: 2266727)			Immediately	$ 92.50
