SELECT A DIAGRAM

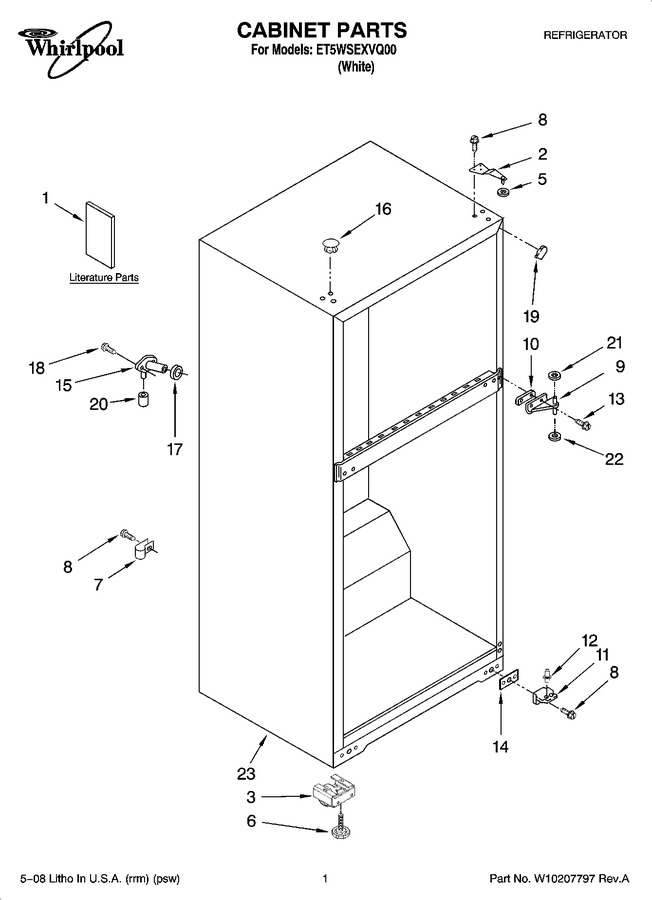

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10185761		Service & Wiring Sheet		Appelez-nous	-
1	W10185762		Energy Label		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 118.10
5	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
6	WPW10133299		Screw, Adjustment   (Replaces: W10133299)				$ 12.35
7	549193		Clamp-cord				$ 14.06
8	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
9	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 85.08
10	2166043		Shim, Hinge Center				$ 69.76
11	WP2325482		Hinge Butt   (Replaces: 2325482)			Immediately	$ 80.00
12	WP2325483		Hinge-pin Bott.   (Replaces: 2325483)			Immediately	$ 7.55
13	WP3428970		Screw   (Replaces: 3428970)				$ 11.53
14	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 8.16
15	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 12.59
16	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 22.87
17	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
18	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
19	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 8.09
20	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.67
21	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
22	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
