SELECT A DIAGRAM

01 - Cabinet Parts

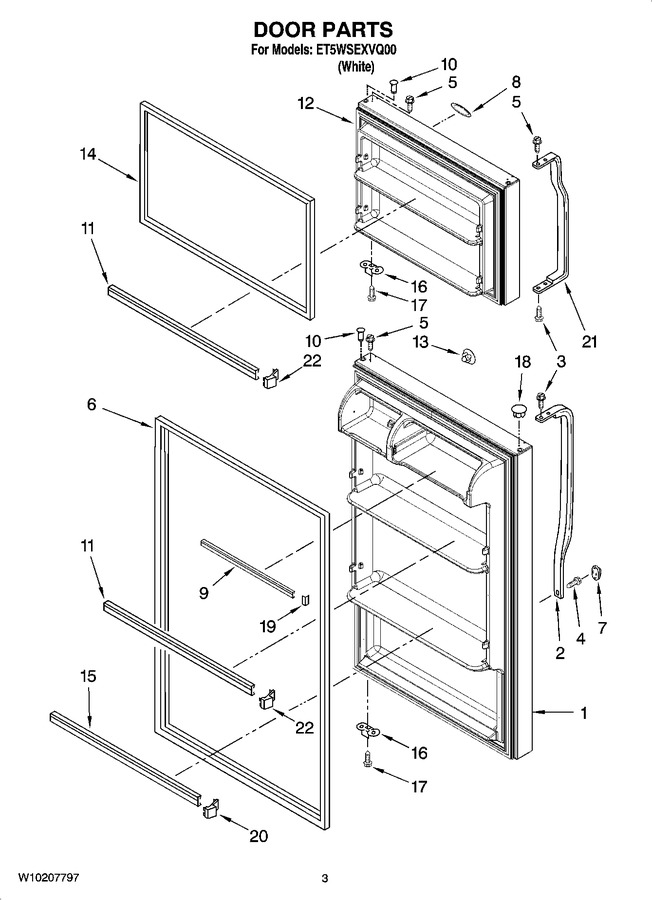

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316383W		Refrigerator Door Includes, Item 6 (white)		Appelez-nous	-
2	WP2221946W		Handle (white)   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
4	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
5	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
6	WP2319265T		Door Gasket-rc Magnetic   (Replaces: W10190033)			Immediately	$ 184.89
7	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 8.14
8	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
9	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Trim, Door (middle)   (Replaces: 2266727)			Immediately	$ 92.50
12	2316026W		Freezer Door (includes Item 14) (white)				$ 479.27
13	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
14	WP2319263T		Door Gasket-fc Magnetic   (Replaces: W10190031)			Immediately	$ 169.53
15	WP2266738		Trim, Door Shelf (lower)   (Replaces: 2266738)				$ 111.69
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
17	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
18	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
19	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
20	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 13.18
21	WP2202098		Handle, F.c. (white)   (Replaces: 2202098)				$ 156.82
22	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25

    View Diagram in Separate Window       Print Part List
