SELECT A DIAGRAM

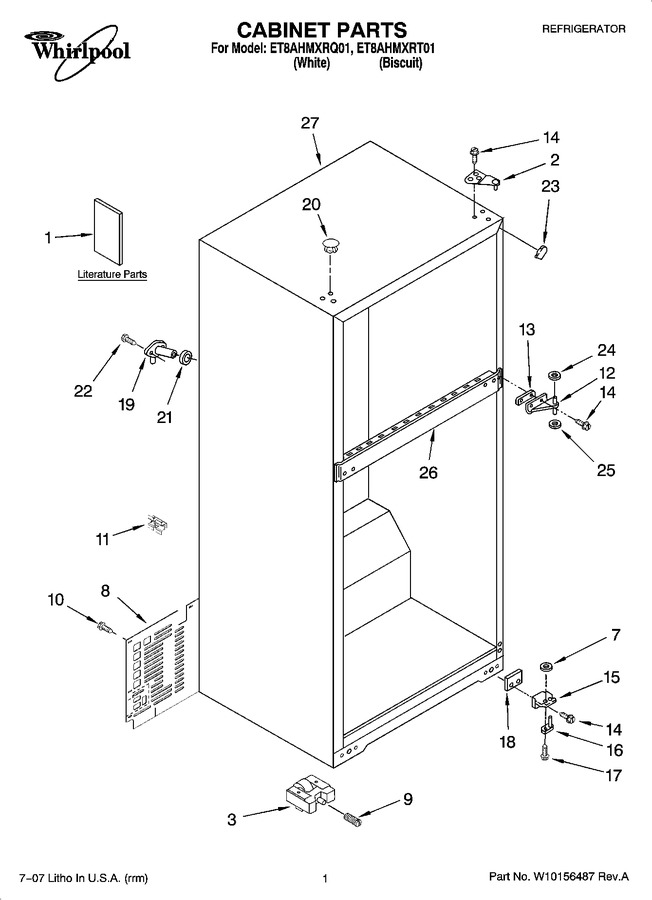

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10145175		Service & Wiring Sheet		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
1	W10123846		Energy Guide		Appelez-nous	-
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 99.45
3	2324094		Roller, Front				$ 342.09
7	WP488296		Washer   (Replaces: 488296)				$ 7.19
8	WP2264132		Cover, Unit   (Replaces: 2266389)				$ 108.35
9	2222100		Screw				$ 99.81
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	2266506		Spacer, Back				$ 13.70
12	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
13	2166043		Shim, Hinge Center				$ 66.44
14	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
15	WP2325482		Hinge Butt, Bottom   (Replaces: 2221926)			Immediately	$ 76.19
16	9791682		Hinge-pin, Bottom				$ 26.60
17	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
18	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
19	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
20	2200924		Hole Plug (6) (biscuit)		Appelez-nous	-
20	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
21	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
22	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
23	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.70
23	2202282		Corner Filler (biscuit)		Appelez-nous	-
24	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
25	WP487576		Washer, 7/64   (Replaces: 487576)			Immediately	$ 9.88

    View Diagram in Separate Window       Print Part List
