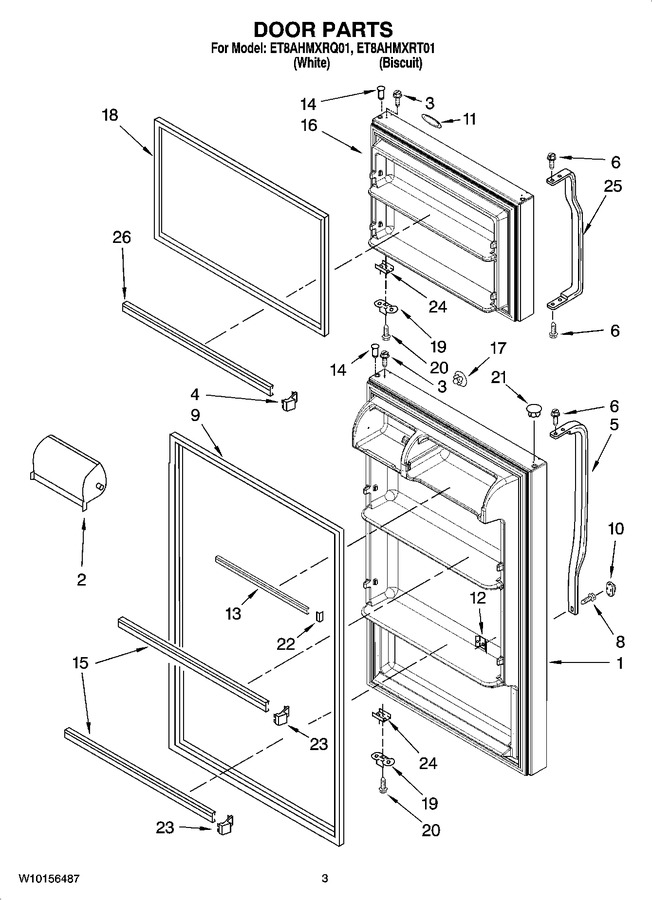

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2266588T | Refrigerator Door (includes Illus. 9,12, 14 & 24) (biscuit) |
|
- | |||||
| 1 | 2266588W | Refrigerator Door (includes Illus. 9,12, 14 & 24) (white) |
|
$ 575.10 | |||||
| 2 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | WP2156003 | Trim, Endcap (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 5 | WP2221946W | Handle, Refrigerator (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 5 | WP2221946T | Handle, Refrigerator (biscuit) (Replaces: 2221946T) |
|
$ 152.26 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (Replaces: 2263258) |
|
Immediately | $ 192.71 | ||||
| 10 | 2202819T | Screw Cover (biscuit) |
|
$ 8.02 | |||||
| 10 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 11 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 12 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 13 | W11129820 | Trim, Door Shelf (Replaces: 2266729) |
|
Immediately | $ 127.34 | ||||
| 14 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 15 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 16 | 2265990W | Freezer Door (white) |
|
$ 479.27 | |||||
| 16 | 2265990T | Freezer Door (biscuit (includes Illus. 14,18 & 24)) |
|
- | |||||
| 17 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 17 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 18 | WP2319263T | Door Gasket, Magnetic (Replaces: 2263257) |
|
Immediately | $ 169.53 | ||||
| 19 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 20 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 21 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 21 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 22 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 23 | WP2195916K | Trim, End Cap (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 24 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 25 | WP2202098 | Handle, Freezer (white) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 25 | WP2215015 | Handle, Freezer (biscuit) (Replaces: 2215015) |
|
$ 153.23 | |||||
| 26 | WP2266727 | Trim, Endcap (Replaces: 2266727) |
|
Immediately | $ 92.50 |
