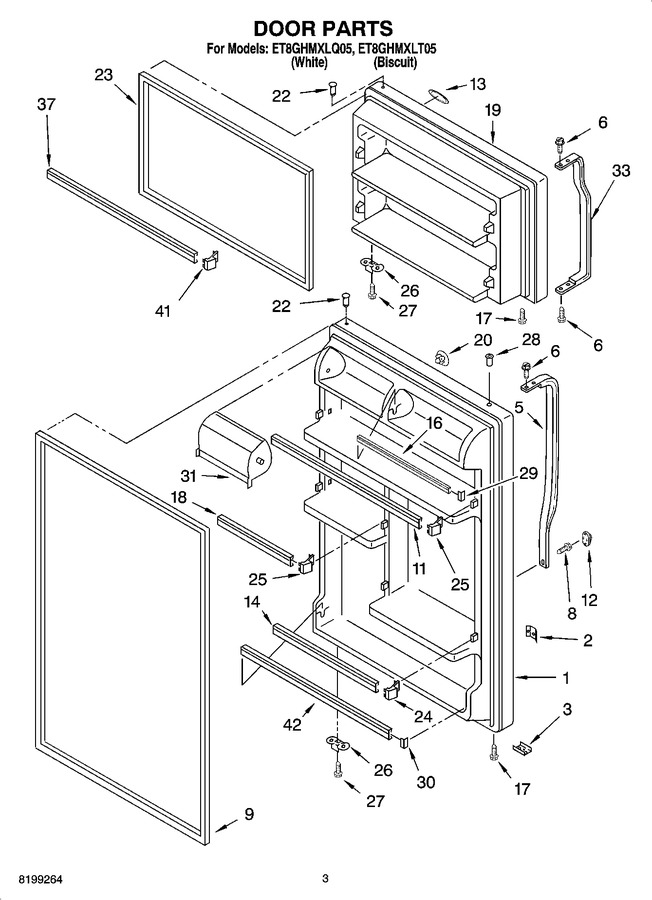

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205285		Refrigerator Door (includes Illus. 2,3,9 & 22) (biscuit)		Appelez-nous	-
1	2183948		Refrigerator Door (includes Illus. 2,3,9 & 22) (white)		Appelez-nous	-
2	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
3	2183198		Tap Plate		Appelez-nous	-
5	WP2202807W		Handle, Refrigerator (white)   (Replaces: 2202807W)				$ 155.22
5	2202807T		Handle, Refrigerator (biscuit)				$ 64.39
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
11	WP2201051		Trim, Door Shelf   (Replaces: 2201051)				$ 109.59
12	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
12	2202819T		Cover, Screw (biscuit)				$ 8.02
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 88.74
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
18	2201052		Trim, Door				$ 28.91
19	2205279		Freezer Door (includes Illus. 3,22 & 23) (biscuit)		Appelez-nous	-
19	2182487		Freezer Door (includes Illus. 3, 22 & 23) (white)		Appelez-nous	-
20	WP2200936		Hole Plug, Handle (1) (biscuit)   (Replaces: 2200936)				$ 7.59
20	WP2189000		Hole Plug, Handle (1) (white)   (Replaces: 2189000)			Immediately	$ 7.40
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.07
25	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug, Hinge (2) (white)   (Replaces: 2212648)			Immediately	$ 7.80
28	WP2212649		Hole Plug, Hinge (2) (biscuit)   (Replaces: 2212649)				$ 7.61
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2205232		Compartment Door		Appelez-nous	-
33	WP2202806W		Handle, Freezer (white)   (Replaces: 2202806W)				$ 148.00
33	2202806T		Handle, Freezer (biscuit)				$ 63.61
37	2201050		Trim-door (2)				$ 43.26
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 12.62
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76
