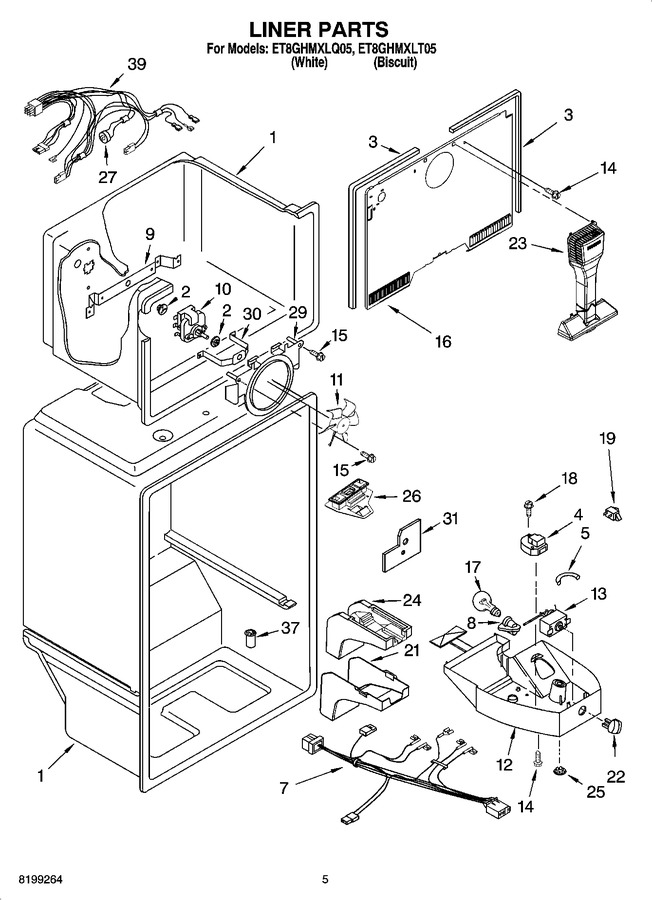

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 26.78 | |||||
| 4 | W10822278 | Defrost Timer (Replaces: 2188376) |
|
Immediately | $ 34.44 | ||||
| 5 | WP2196003 | Tube-barrier, Thermostat (Replaces: 2204640) |
|
$ 7.95 | |||||
| 7 | 2187885 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | 2214976 | Bracket, Evap. Fan, Rear |
|
$ 29.44 | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2218381 | Control Box |
|
- | |||||
| 13 | WP2204605 | Thermostat Assy. (Replaces: 2225460) |
|
Immediately | $ 99.88 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 16 | 2254261 | Cover-evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (Replaces: 2160708) |
|
Immediately | $ 18.31 | ||||
| 18 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.56 | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | WP2202885 | Knob, Thermostat (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 103.09 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 124.79 | ||||
| 25 | 940014 | Hole Plug, Control Box |
|
$ 18.33 | |||||
| 26 | 2210390 | Air Separator Assembly |
|
$ 54.27 | |||||
| 27 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2214979 | Bracket, Evap. Fan, Front |
|
$ 56.05 | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 37 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 94.43 | |||||
| 39 | 2187686 | Wire Assembly, F.c. (includes Illus. 27) |
|
- |
