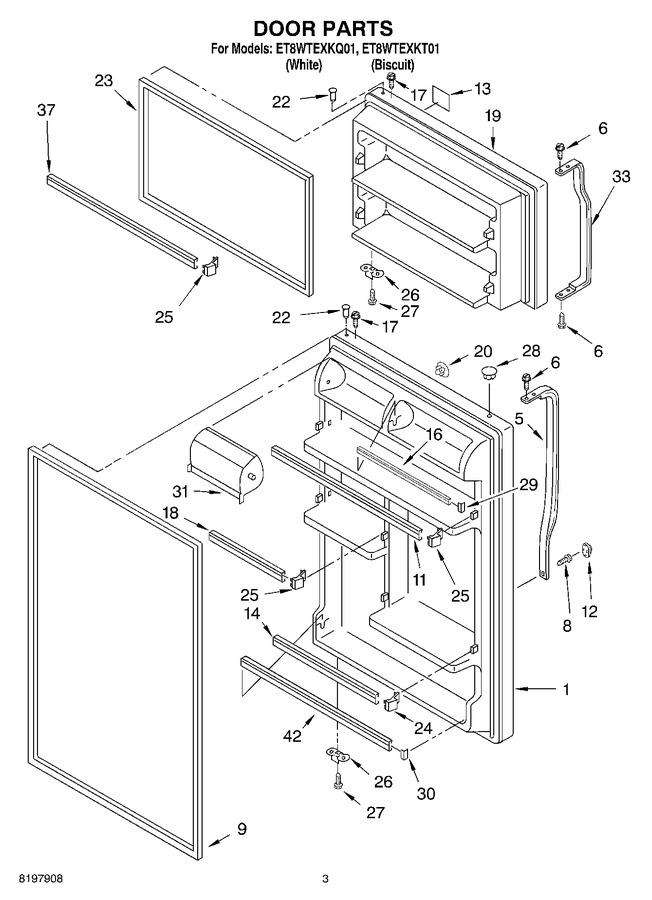

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205285		Refrigerator Door (includes No.9 & No.22) (biscuit)		Appelez-nous	-
1	2183948		Refrigerator Door (includes No.9 & No.22) (white)		Appelez-nous	-
5	WP2202807W		Handle Center (white)   (Replaces: 2202807W)				$ 162.98
5	2202807T		Handle Center (biscuit)				$ 64.39
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
11	WP2201051		Trim, Door Shelf   (Replaces: 2201051)				$ 115.07
12	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 8.14
12	2202819T		Cover, Screw (biscuit)				$ 8.02
13	2157907		Nameplate (white)				$ 6.56
13	2213233		Nameplate (biscuit)		Appelez-nous	-
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 91.78
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
17	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
18	2201052		Trim, Door				$ 28.91
19	2182487		Freezer Door (includes No.22 & No.23) (white)		Appelez-nous	-
19	2205279		Freezer Door (includes No.22 & No.23) (biscuit)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
22	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.72
25	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
33	WP2202806W		Handle, F.c. (white)   (Replaces: 2202806W)				$ 155.40
33	2202806T		Handle, F.c. (biscuit)				$ 63.61
37	2201050		Trim-door (2)				$ 43.26
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25
