SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit

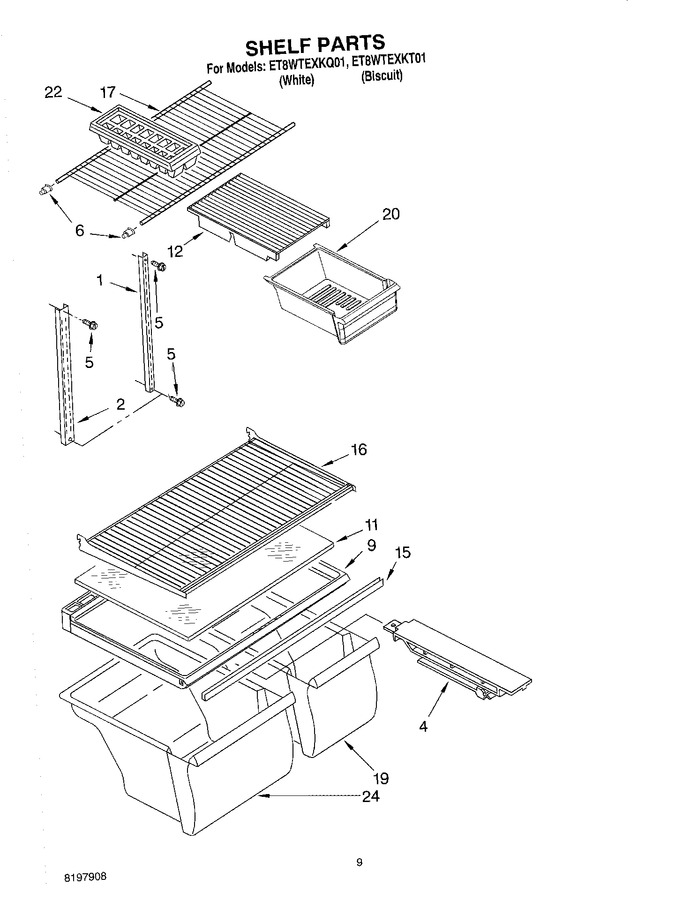

05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.00
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 247.46
11	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 246.60
12	2163848		Cover, Meat Pan				$ 71.41
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 97.22
16	2163856		Shelf Assembly		Appelez-nous	-
17	2189453		Shelf, Freezer		Appelez-nous	-
19	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 168.60
20	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 139.81
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 45.56
24	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
24	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
24	350956		Enamel, Almond (12 Oz. Spray Can)				$ 54.01
24	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
24	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
24	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
24	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
24	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
24	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
24	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
24	833938		Kit, Terminal Connector				$ 8.47
24	1117510		Torx Key				$ 5.84
24	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 170.66
24	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
24	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
24	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
24	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
24	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
24	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
24	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
24	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
24	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
