SELECT A DIAGRAM

01 - Cabinet, Literature

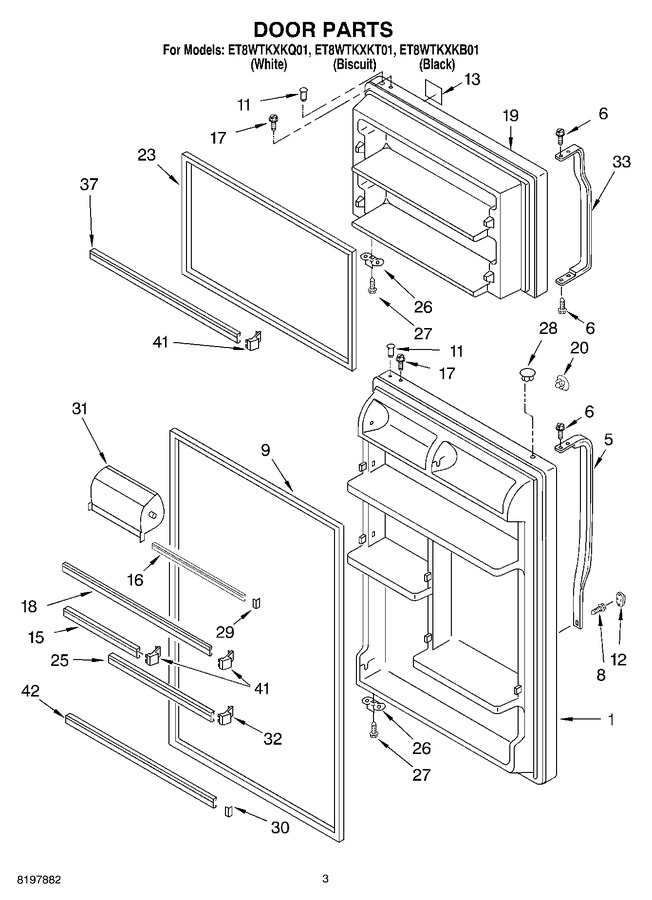

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2213386		Refrigerator Door (includes No.9 & No.11) (black)		Appelez-nous	-
1	2183948		Refrigerator Door (includes No.9 & No.11) (white)		Appelez-nous	-
1	2205285		Refrigerator Door (includes No.9 & No.11) (biscuit)		Appelez-nous	-
5	WP2202807W		Handle, R.c. (white)   (Replaces: 2202807W)				$ 155.22
5	2202807B		Handle, R.c. (black)				$ 66.99
5	2202807T		Handle, R.c. (biscuit)				$ 64.39
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2177305		Door Gasket, Magnetic (black)   (Replaces: 2214964)				$ 274.07
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214962)			Immediately	$ 164.66
11	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
12	WP2202819B		Cover, Screw (black)   (Replaces: 2202819B)				$ 10.89
12	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
12	2202819T		Cover, Screw (biscuit)				$ 8.02
13	2152334		Nameplate (black)				$ 36.13
13	2213233		Nameplate (biscuit)		Appelez-nous	-
13	2157907		Nameplate (white)				$ 6.56
15	2201052		Trim, Door				$ 28.91
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.83
18	WP2201051		Trim, Door   (Replaces: 2201051)				$ 109.59
19	2182487		Freezer Door (includes No.11 & No.23) (white)		Appelez-nous	-
19	2200710		Freezer Door (includes No.11 & No.23) (black)		Appelez-nous	-
19	2205279		Freezer Door (includes No.11 & No.23) (biscuit)		Appelez-nous	-
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.59
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.25
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
23	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 225.08
25	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 50.33
32	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.07
33	WP2202806W		Handle, F.c. (white)   (Replaces: 2202806W)				$ 148.00
33	2202806T		Handle, F.c. (biscuit)				$ 63.61
33	WP2202806B		Handle, F.c. (black)   (Replaces: 2202806B)				$ 147.21
37	2201050		Trim-door (2)				$ 43.26
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 12.62
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76

    View Diagram in Separate Window       Print Part List
