SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

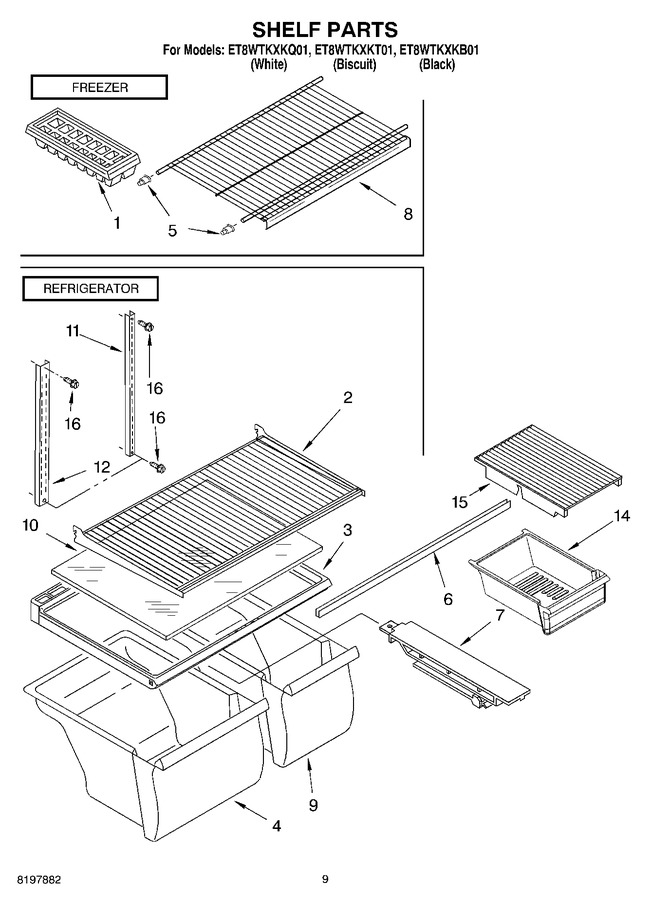

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
2	2163856		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 247.46
4	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 170.66
5	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.00
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 97.22
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
8	2189453		Shelf		Appelez-nous	-
9	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 168.60
10	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 246.60
11	2210522		Shelf, Ladder (2)				$ 44.10
12	2202821		Shelf, Ladder Center		Appelez-nous	-
14	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 139.81
15	2163848		Cover, Meat Pan				$ 71.41
16	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
16	1117510		Torx Key				$ 5.84
16	WP489478		Screw   (Replaces: 489478)				$ 7.75
16	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
16	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
16	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
16	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
16	350942		Primer White (13 Oz. Spray Can)				$ 89.66
16	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
16	833938		Kit, Terminal Connector				$ 8.07
16	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
16	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
16	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
16	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
16	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
16	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
16	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
16	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
16	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
16	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
