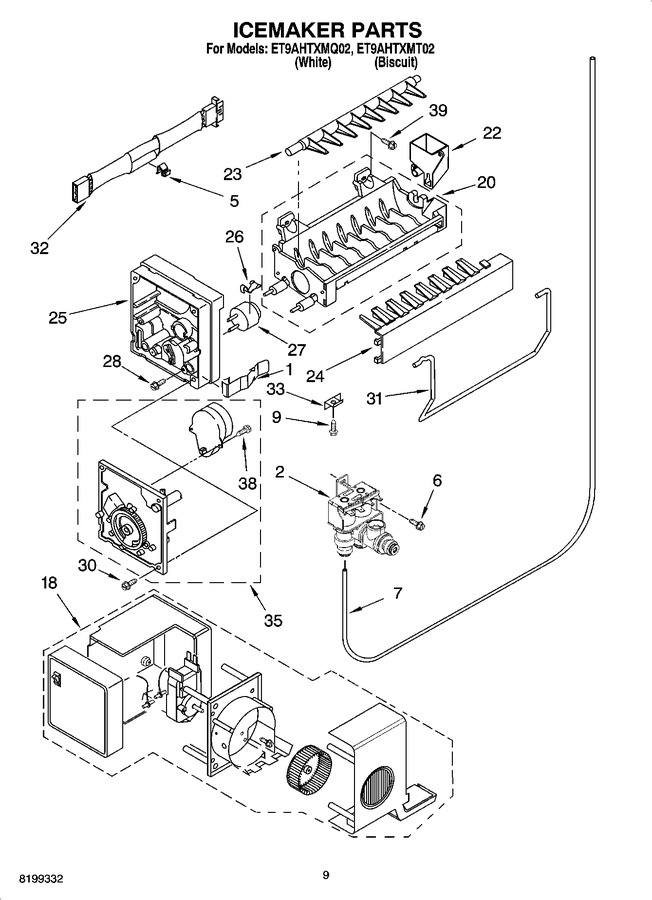

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204881		Clip, Retainer		Appelez-nous	-
2	WP2188808		Valve (double) Solenoid   (Replaces: 2188808)			Immediately	$ 158.82
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
7	W10823511		Tube, Water   (Replaces: 2210514)			Immediately	$ 32.41
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 7.75
18	2221674		Max Ice Assembly		Appelez-nous	-
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 2194711)				$ 83.60
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 86.05
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	2210489		Thermostat (also Order 542369 Cement Alumilastic)				$ 117.12
28	8533917		Screw				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 84.53
32	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.29
39	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.54
99	4317943		Complete Icemaker Assembly			Immediately	$ 188.95
