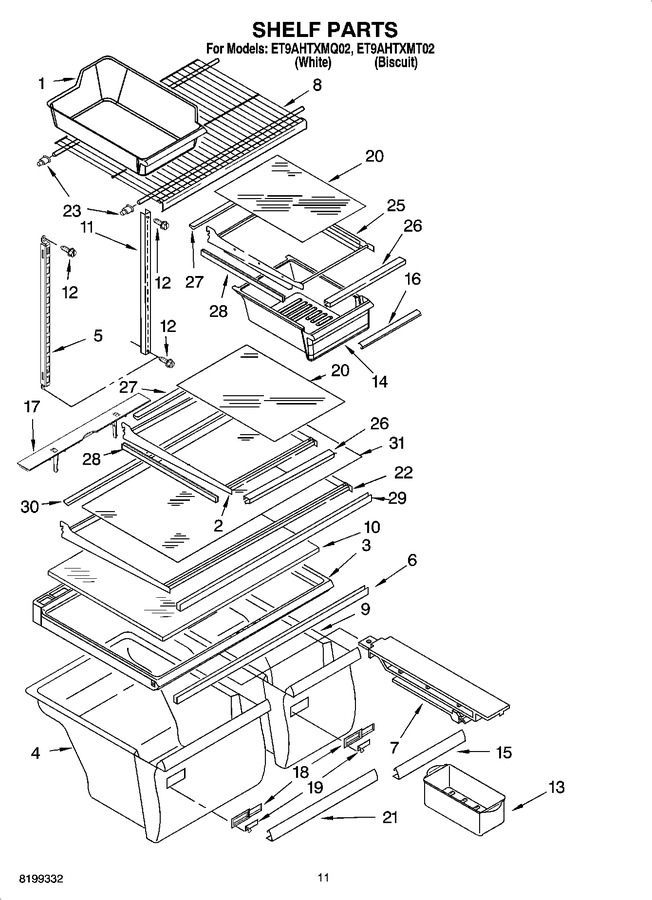

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254352A | Ice Bucket (Replaces: 2254352) |
|
$ 55.85 | |||||
| 2 | 2201107K | Shelf Assembly, Cantilever (includes 20, 26, 27 And 28) |
|
$ 169.02 | |||||
| 3 | WP2314548 | Cover, Crisper (Replaces: 2221752) |
|
$ 247.46 | |||||
| 4 | W10854037 | Crisper Pan (includes 18, 19, And 21) (Replaces: 2218139) |
|
Immediately | $ 170.66 | ||||
| 5 | 2300520 | Shelf, Ladder |
|
$ 75.36 | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2172541) |
|
$ 97.22 | |||||
| 7 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 34.74 | ||||
| 8 | WP2176275 | Shelf (Replaces: 2176275) |
|
$ 123.40 | |||||
| 9 | W10856580 | Crisper Pan (includes 15, 18, And 19) (Replaces: 2218138) |
|
Immediately | $ 168.60 | ||||
| 10 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 246.60 | |||||
| 11 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 13 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 18.61 | |||||
| 14 | WP2218127K | Meat Pan (Replaces: 2218127) |
|
$ 139.81 | |||||
| 15 | 2195340 | Trim, Crisper Pan |
|
$ 7.07 | |||||
| 16 | 2176356 | Trim, Meat Pan |
|
- | |||||
| 17 | 2254458 | Air Deflector (crisper Pan) |
|
$ 68.24 | |||||
| 18 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.06 | |||||
| 19 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 20 | 2200985 | Glass, Half Shelf |
|
- | |||||
| 21 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 82.54 | |||||
| 22 | 2201109 | Shelf Assembly, Cantilever (includes Items 29,30 & 31) |
|
$ 121.04 | |||||
| 23 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 25 | 2201111 | Shelf Assembly, Meat Pan (includes 20, 26, 27 And 28) |
|
$ 168.49 | |||||
| 26 | 2188684 | Trim, Shelf Front |
|
$ 11.33 | |||||
| 27 | WP2188689 | Trim, Shelf (rear) (Replaces: 2188686) |
|
$ 115.76 | |||||
| 28 | 2188711 | Trim, Shelf Side |
|
- | |||||
| 29 | 2188690 | Trim, Shelf (front) |
|
- | |||||
| 30 | WP2188689 | Trim, Shelf Side (Replaces: 2188688) |
|
$ 115.76 | |||||
| 31 | 2200986 | Glass, Cantilever |
|
$ 120.53 |
