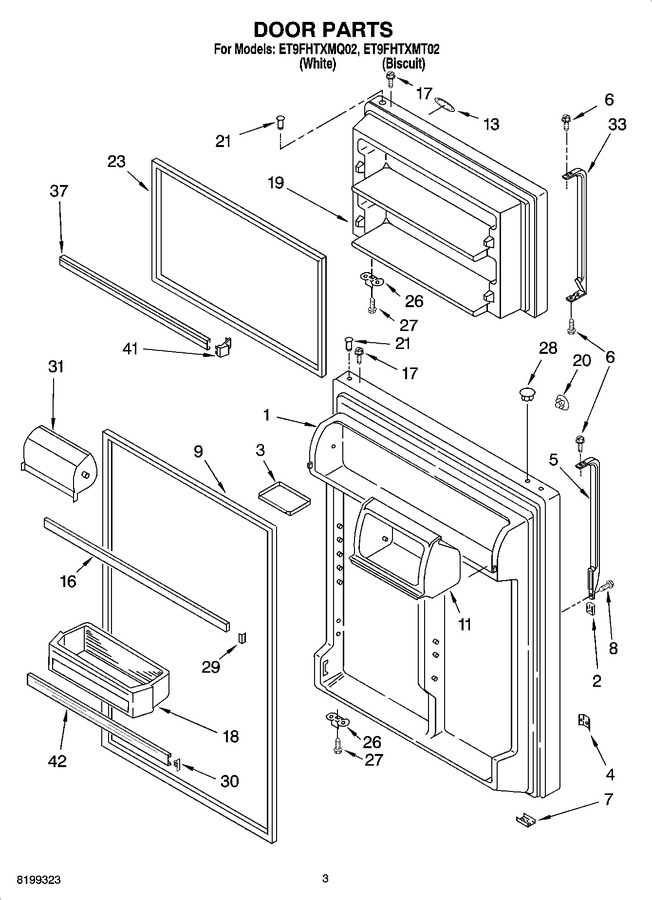

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Water Dispenser Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183864 | Refrigerator Door (includes Illus. 4,7,9 & 21) (white) |
|
- | |||||
| 1 | 2205286 | Refrigerator Door (includes Illus. 4,7,9 & 21) (biscuit) |
|
- | |||||
| 2 | 2193353T | Handle, Trim (biscuit) |
|
- | |||||
| 2 | WP2193353W | Handle, Trim (white) (Replaces: 2193353W) |
|
$ 8.11 | |||||
| 3 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 4 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 5 | 4388947 | Handle, Refrigerator (white) (Replaces: 2213112W) |
|
$ 194.73 | |||||
| 5 | 2213112T | Handle, Refrigerator (biscuit) |
|
- | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 7 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2159057 | Door Gasket, Magnetic (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 11 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 16 | 2159312 | Trim-door Shelf |
|
$ 47.75 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 18 | 2204811 | Door Bin (3) |
|
$ 35.90 | |||||
| 19 | 2205130 | Freezer Door (includes Illus. 7,21 & 23) Panel (biscuit) |
|
- | |||||
| 19 | 2183860 | Freezer Door (includes Illus. 7,21 & 23) Panel (white) |
|
- | |||||
| 20 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 20 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 23 | 2159327 | Door Gasket, Magnetic (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 29 | 2177340 | Plug-trim |
|
$ 5.84 | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | 2218109 | Compartment Door |
|
$ 33.66 | |||||
| 33 | 4388947 | Handle, Freezer (white) (Replaces: 2213111W) |
|
$ 194.73 | |||||
| 33 | 2213111T | Handle, Freezer (biscuit) |
|
- | |||||
| 37 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 129.76 |
