SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Water Dispenser Parts, Optional Parts

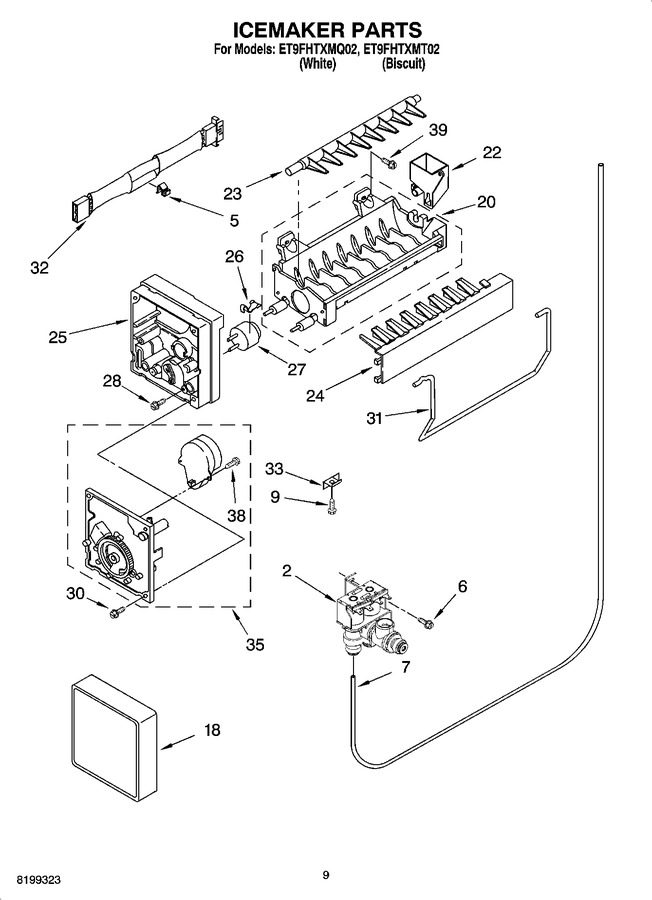

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2188808		Valve (double) Solenoid   (Replaces: 2188808)			Immediately	$ 158.82
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
7	W10823511		Tube, Water   (Replaces: 2210514)			Immediately	$ 32.41
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
18	WPW10289690		Cover   (Replaces: 2210484)			Immediately	$ 8.82
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 2194711)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2194712)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 114.64
28	8533917		Screw				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 88.76
32	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
39	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
99	4317943		Complete Icemaker Assembly			Immediately	$ 183.45

    View Diagram in Separate Window       Print Part List
