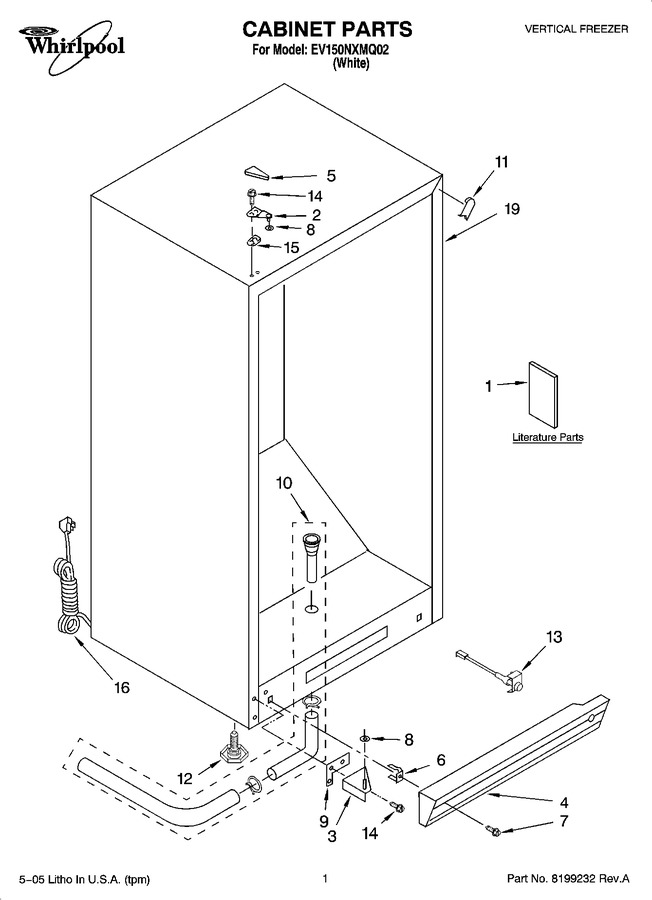

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210247 | Energy Guide |
|
- | |||||
| 1 | 4390916 | Owners Manual |
|
- | |||||
| 2 | 2-81016-105 | Top Hinge (white) (Replaces: 8210222) |
|
$ 43.24 | |||||
| 3 | 8210223 | Bottom Hinge (white) |
|
- | |||||
| 4 | 8210271 | Grille (white (includes 6 & 7)) |
|
- | |||||
| 5 | 4357279 | Hinge Cover (white) |
|
$ 46.56 | |||||
| 6 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 11.50 | ||||
| 7 | WP489478 | Screw (Replaces: 4357243) |
|
$ 8.18 | |||||
| 8 | W10851331 | Washer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 9 | 4390489 | Shim, Bottom |
|
$ 7.30 | |||||
| 10 | 4390871 | Drain Assembly |
|
- | |||||
| 11 | 8210227 | Filler, Corner (white) |
|
- | |||||
| 12 | W11117769 | Leg, Leveler (Replaces: 4390866) |
|
Immediately | $ 19.37 | ||||
| 13 | 4390905 | Power Light Assembly |
|
- | |||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 15 | 4390489 | Shim, Hinge |
|
$ 7.30 | |||||
| 16 | 4390696 | Power Cord |
|
$ 90.49 | |||||
| 19 | N/A | Cabinet (not A Serviceable Part) |
|
- |
