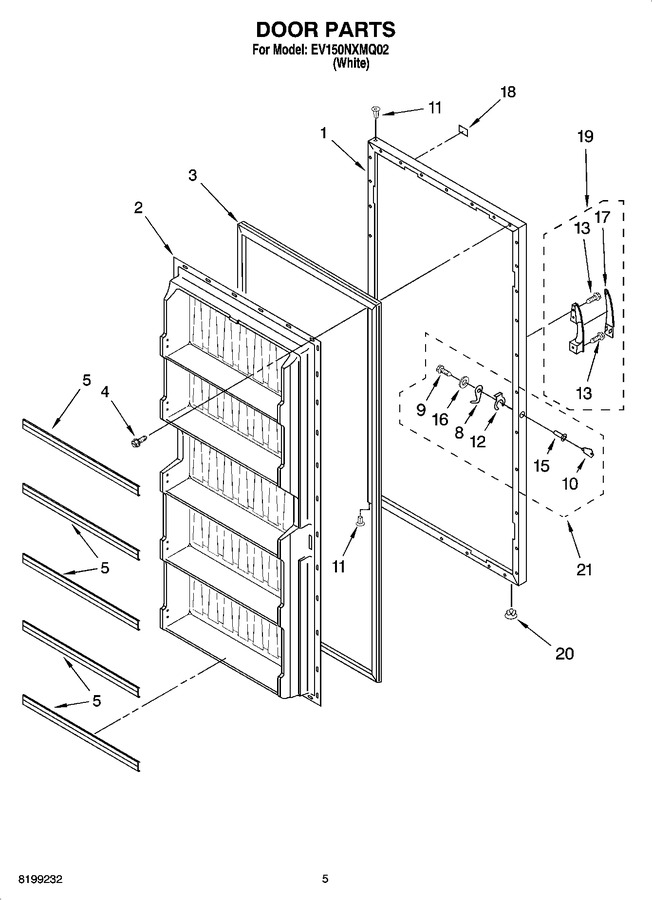

03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390906		Exterior Door (white (includes Insulation))		Appelez-nous	-
2	WP4390870		Interior Panel   (Replaces: 4390870)				$ 278.76
3	WP4357099		Gasket (white)   (Replaces: 4357099)				$ 338.88
4	4390598		Screw   (Replaces: 4357290)				$ 22.04
5	4390608		Trim Shelf				$ 45.37
8	4357289		Lock, Bolt				$ 22.23
9	WP489478		Screw, Lock   (Replaces: 4356843)				$ 8.18
10	WP4356840		Key   (Replaces: 4356840)				$ 11.28
11	4390731		Bushing				$ 19.69
12	4356842		Spring, Clip Mounting				$ 12.24
13	WP489491		Screw   (Replaces: 4390669)				$ 7.30
15	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
16	4356992		Washer, Lock		Appelez-nous	-
17	4390668		Trim, Handle		Appelez-nous	-
18	4390656		Nameplate (white)		Appelez-nous	-
19	4390667		Handle Kit (white)		Appelez-nous	-
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
21	4357145		Lock Assemlby (includes Items: 8,9,10,12,15)				$ 27.79
